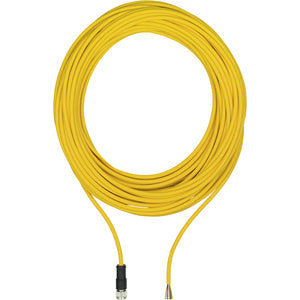

PILZ PSEN cable M8-8sf, 20m

Write a review
Rs. 0.00

Technical Data
Connector type 18-pin M8 female connector
Shape of connector type 1straight
Matl threaded ring conn 1GD-Zn, Ni
Contact surfaces material 1Au
Material of socketsCuSn
Cable material K1Cu
Insulation material cable K1PP cold resistance
Cable type K1LiF9Y11Y
Length cable20 m
Colour cable insulation 1Yellow, similar to RAL 1003
Housing colourBlack
Material of cable insulation 1TPU / TPE-U
Trailing capability of cable 1yes
Bend radius (when laying) K15 x Ƙ
Max. outside diameter cable K15.7 mm
Conductor cross section0.14 mmĀ²
Cable cross section AWG K126
Stranding K18 cores round cotton filler
Shielding K1no
Number of conductors8
Approvals for cable K1UL AWM-Style 20233
Approvals for connector 1UL 94 HB
Halogen-freeyes
Oil resistanceresistant
Flame resistanceCSA FT-2, UL 1581, Cable Flame
Housing materialPUR
Torque interlocking screw0.4 Nm
Net weight693 g
Gross weight696 g
