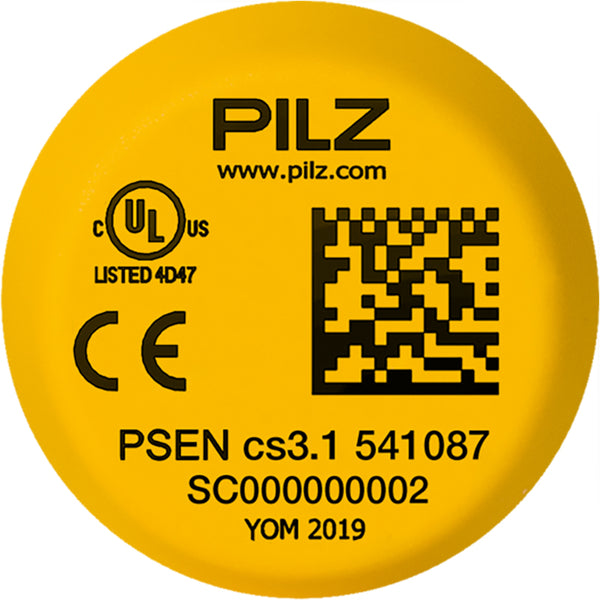

PILZ PSEN cs3.1 low profile glue 1 actuator

Write a review
Rs. 0.00

Technical Data

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -25 Ā°C to 70 Ā°C
Max. ambient temperature at Hmax +60 Ā°C
Max. ambient temperature at 2000 m +70 Ā°C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-30
Humidity rating 93% r. h. at 40 Ā°C
Permissible operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Protection type, housing N/A

Mechanical Data

Housing material (upper part) PBT
Height dimension 3.8 mm
Width dimension 18 mm
Depth dimension 18 mm
Net weight 2 g
Gross weight 5 g

Transponder

Operating frequency 122 kHz - 128 kHz

Out of stock
