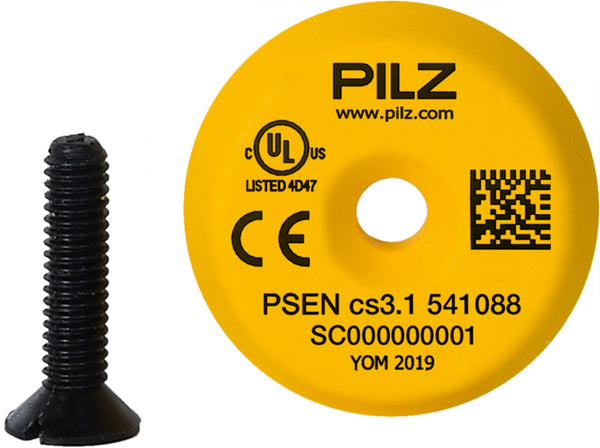

PILZ PSEN cs3.1 low profile screw 1 actuator

SUA00001538

Technical Data

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -25 °C to 70 °C
Max. ambient temperature at Hmax +60 °C
Max. ambient temperature at 2000 m +70 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-30
Humidity rating 93% r.h. at 40 °C
Permissible operating height (ASL) 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g

Mechanical Data

Housing material (upper part) PBT
Height dimension 3.8 mm
Width dimension 18 mm
Depth dimension 18 mm
Net weight 2 g
Gross weight 5 g

Transponder

Operating frequency 122 kHz - 128 kHz
