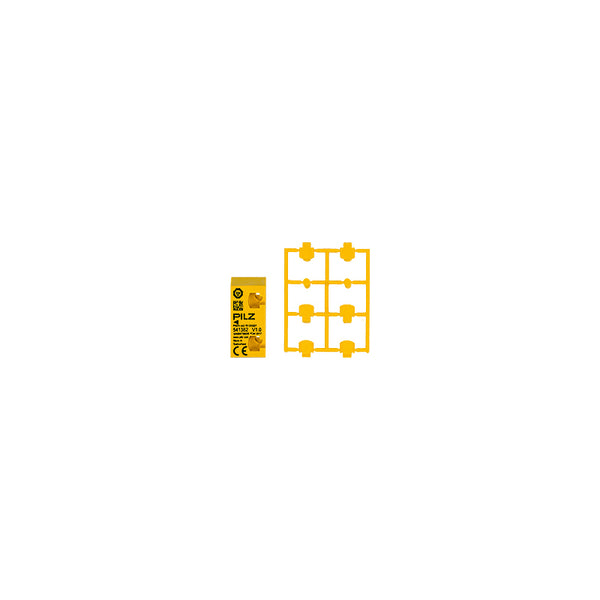

PILZ PSEN cs3.19-OSSD1 1actuator

SUA00001518

Technical Data

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -25 °C to 55 °C
Max. ambient temp. at Hmax
Max. ambient temp. at 2000 m +55 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r.h. at 40 °C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Protection type (housing)

Mechanical Data

Product material PBT
Height dimension 37 mm
Width dimension 18 mm
Depth dimension 18 mm
Net weight 15 g
Gross weight 35 g

Transponder

Operating frequency 122 kHz - 128 kHz
