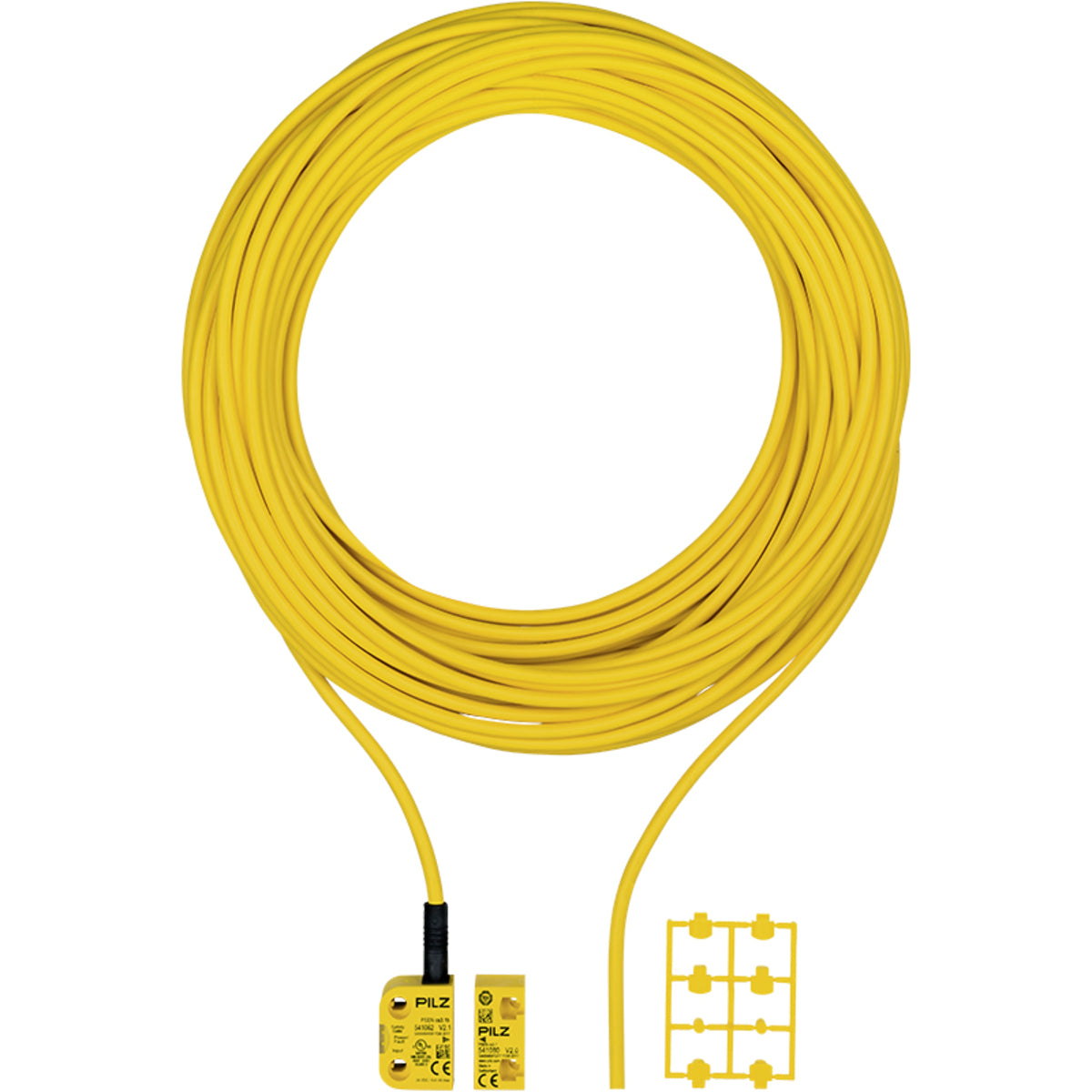

PILZ PSEN cs3.1b /PSEN cs3.1 1unit

Write a review
Rs. 0.00

Technical Data

Electrical Data

Supply voltage (V) 24 V
Type of supply voltage U1 DC
Power consumption DC 1 W

Inputs

Number of inputs 2
DC voltage at input 24 V DC

Semiconductor Outputs

Number of OSSD outputs 2
Number of signal outputs 1
Potential isolation S/C O No
S/C output short circuit proof Yes
Utilisation category to EN 60947-1 DC-12

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -25 Ā°C to 70 Ā°C
Max. ambient temp. at Hmax +60 Ā°C
Max. ambient temp. at 2000 m +70 Ā°C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r. h. at 40 Ā°C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Overvoltage category III
Pollution degree clear & creep 3

Switching Distances

Change in operating distance with temperature change Ā±0.01 mm/Ā°C

Mechanical Data

Bend radius (when laying) 5 x Ƙ
Type 1 actuator PSEN cs3.1
Sensor can be flush-mounted Yes, follow installation guide
Connection type 10 m cable
Cable lines Li9Y11Y 8 x 0.14 mmĀ²
Housing material (upper part) PBT
Height dimension 37 mm
Width dimension 26 mm
Depth dimension 18 mm
Net weight 390 g
Gross weight 420 g

Transponder

Operating frequency 122 kHz - 128 kHz
