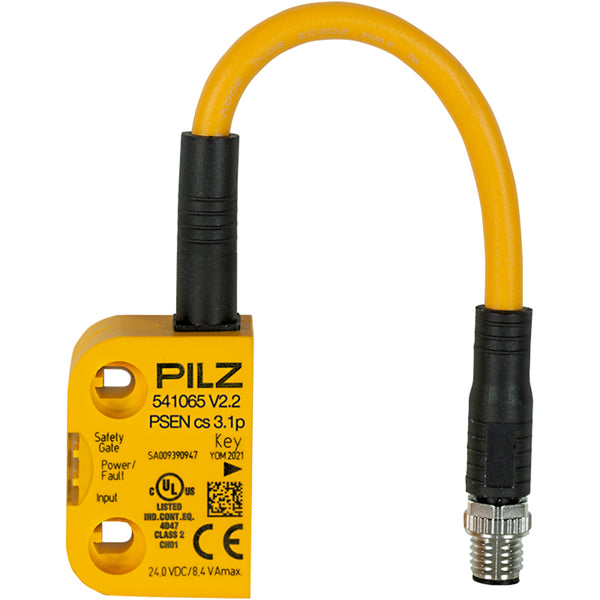

PILZ PSEN cs3.1p Key 1 switch

SUA00001542

Technical Data

Electrical Data

Supply voltage (V) 24 V
Type of supply voltage U1 DC
Power consumption DC 1 W
Number of inputs 2
DC voltage at input 24 V DC
Number of OSSD outputs 2
Number of sig. outputs 1
Potential isolation S/C O No
S/C output short circuit proof Yes
Utilisation cat. to EN 60947-1 DC-12

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -10 - 55 °C
Max. ambient temp. at Hmax
Max. ambient temp. at 2000 m +55 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r. h. at 40 °C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Overvoltage category III
Pollution degree clear & creep 3
Protection type, housing

Mechanical Data

Bend radius (when laying) K1 5 x Ø
Sensor can be flush-mounted Yes, follow installation guide
Connection type M8, 8-pin male
Cable lines Li9Y11Y 8 x 0.14 mm²
Housing material upper part PBT
Height dimension 37 mm
Width dimension 26 mm
Depth dimension 18 mm
Net weight 35 g
Gross weight 50 g

Transponder

Operating frequency 122 kHz - 128 kHz
