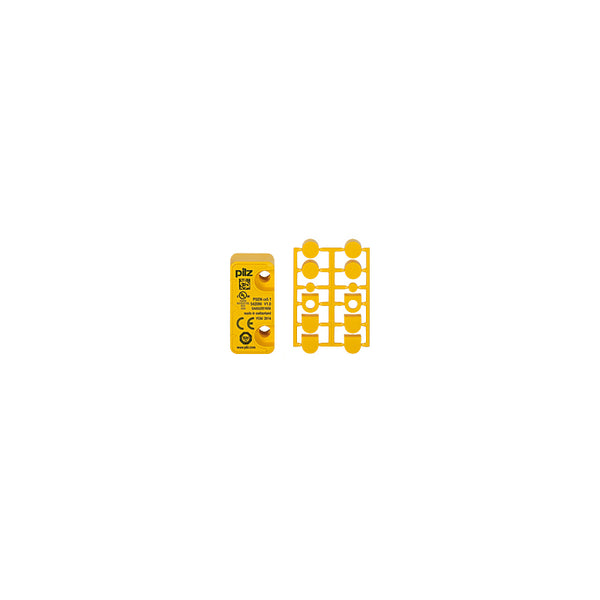

PILZ PSEN cs6.1 1actuator

SUA00001561

Technical Data

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -25 - 70 °C
Max. ambient temp. at Hmax +60 °C
Max. ambient temp. at 2000 m +70 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-30
Humidity rating 93 % r. h. at 40 °C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Protection type, housing

Mechanical Data

Housing material upper part PBT
Height dimension 18 mm
Width dimension 37 mm
Depth dimension 13 mm
Net weight 10 g
Gross weight 15 g

Transponder

Operating frequency 122 kHz - 128 kHz
