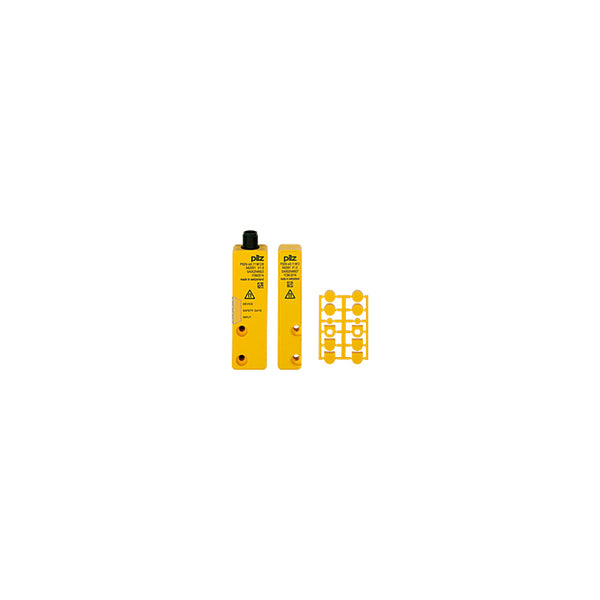

PILZ PSEN cs6.11 M12/8/PSEN cs6.11 M12 1unit

Write a review
Rs. 0.00

Technical Data

Electrical Data

Supply voltage (V) 24 V
Type of supply voltage U1 DC
Power consumption DC 1 W

Inputs

Number of inputs 2
DC voltage at input 24 V DC

Semiconductor Outputs

Number of OSSD outputs 2
Number of sig. outputs 1
Potential isolation S/C O No
S/C output short circuit proof Yes
Utilisation cat. to EN 60947-1 DC-12

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -25 - 70 Ā°C
Max. ambient temp. at Hmax +60 Ā°C
Max. ambient temp. at 2000 m +70 Ā°C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-30
Humidity rating 93% r.h. at 40 Ā°C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Overvoltage category III
Pollution degree clear.&creep. 3
Protection type, housing

Switching Distances

Change op. dist. temp. change +-0.02mm/Ā°C

Mechanical Data

Holding force magnet 30 N
Type 1 actuator PSEN cs6.11 M12
Sensor can be flush-mounted Yes, follow installation guide
Connection type M12, 8-pin male
Product material PBT, PA+GF, Polycarbonate
Height dimension 26.4 mm
Width dimension 101.6 mm
Depth dimension 19 mm
Net weight 135 g
Gross weight 155 g

Transponder

Operating frequency 122 kHz - 128 kHz
