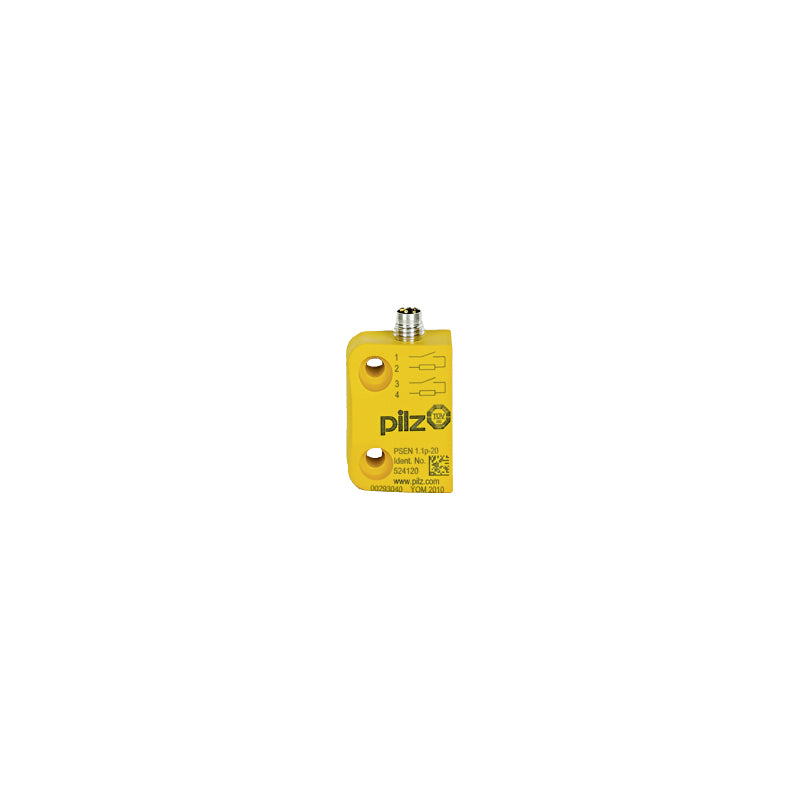

PILZ PSEN ma1.1p-12/3mm/ix1/1switch

SUA00001418

Technical Data
Electrical Data
Supply voltage (V) 24 V
Type of supply voltage U1 DC
Switching voltage 24 V
Environmental Data
Ambient temperature -25 to 70 °C
Max. ambient temp. at 2000 m +70 °C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Pollution degree 3
Mechanical Data
Type 1 actuator PSEN 1.1-10
Sensor can be flush-mounted Yes, follow installation guide
Connection type M8, 4-pin male
Housing material upper part PBT
Height dimension 36 mm
Width dimension 26 mm
Depth dimension 13 mm
Net weight 19 g
Gross weight 27 g
