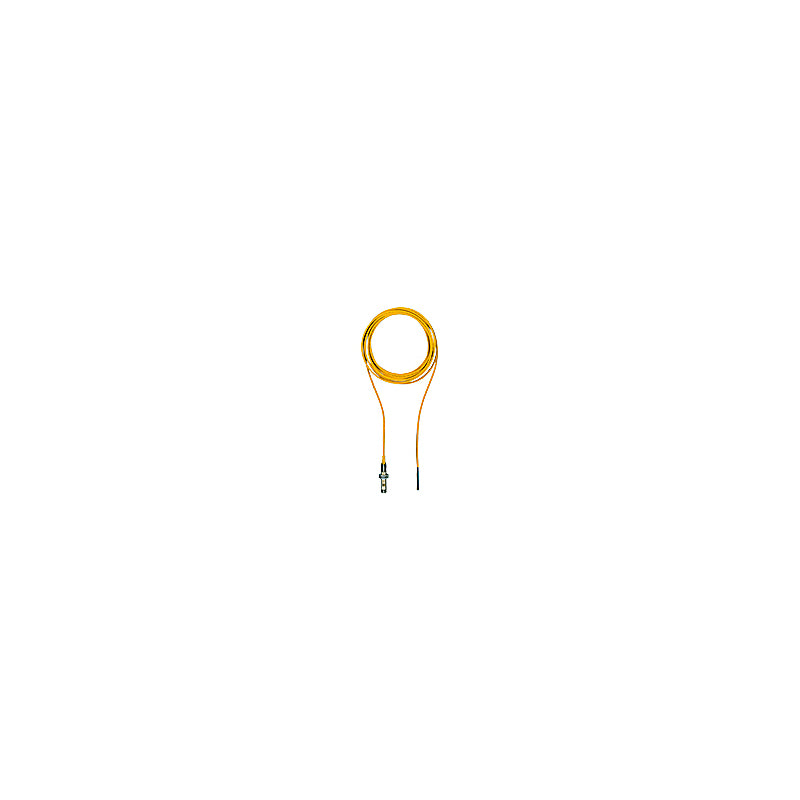

PILZ PSEN ma1.3b-21/VA/1switch

SUA00001427

Technical Data
Electrical Data
Supply voltage (V) 24 V
Type of supply voltage U1 DC
Switching voltage 24 V
Utilisation cat. reed contacts DC-12
Environmental Data
Ambient temperature -25 to 80 °C
Max. ambient temp. at Hmax
Max. ambient temp. at 2000 m
Climatic suitability standard IEC 60068-2-30
Humidity rating 90 % r. h. at 40 °C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Pollution degree 3
Protection type, housing
UL enclosure type Type 1
Mechanical Data
Type 1 actuator PSEN ma1.3-08 VA
Sensor can be flush-mounted Yes, follow installation guide
Connection type 10 m cable
Cable lines Li9Y11Y 6 x 0.14 mm2
Housing material upper part Stainless steel 1.4401
Height dimension 12 mm
Width dimension 12 mm
Depth dimension 76 mm
Net weight 220 g
Gross weight 230 g
