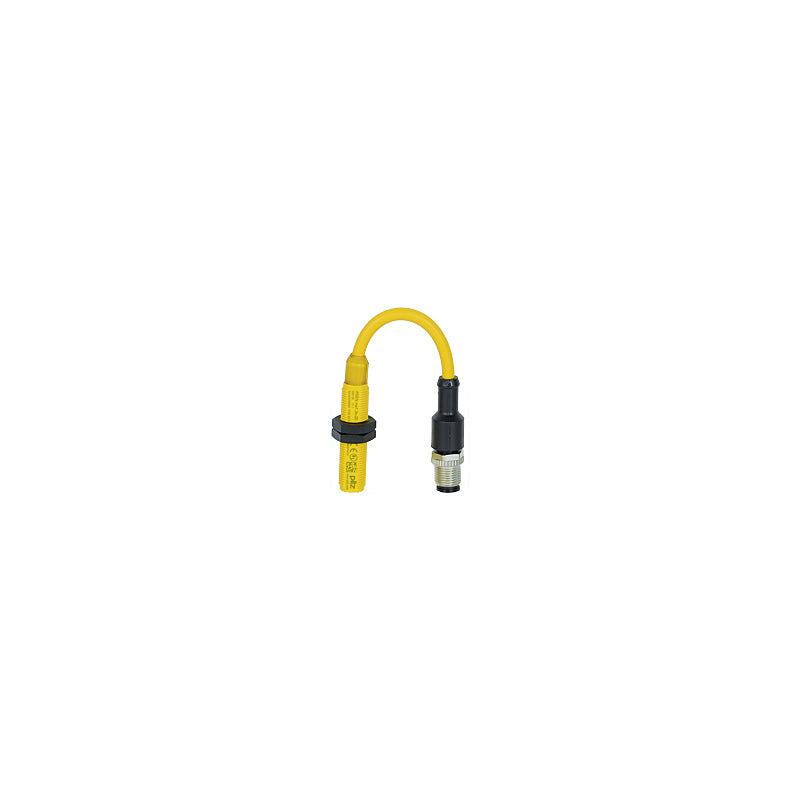

PILZ PSEN ma1.3n-20/1switch

SUA00001415

Technical Data
Electrical Data
Supply voltage (V) 24 V
Type of supply voltage U1 DC
Switching voltage 24 V
Environmental Data
Ambient temperature -25 to 70 °C
Max. ambient temp. at 2000 m +70 °C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Pollution degree 3
Mechanical Data
Type 1 actuator PSEN ma1.3-08
Sensor can be flush-mounted Yes, follow installation guide
Connection type M12, 5-pin male
Cable lines LiY11Y 8 x 0.14 mm²
Housing material upper part PBT
Depth dimension 59.1 mm
Net weight 20 g
Gross weight 48 g
