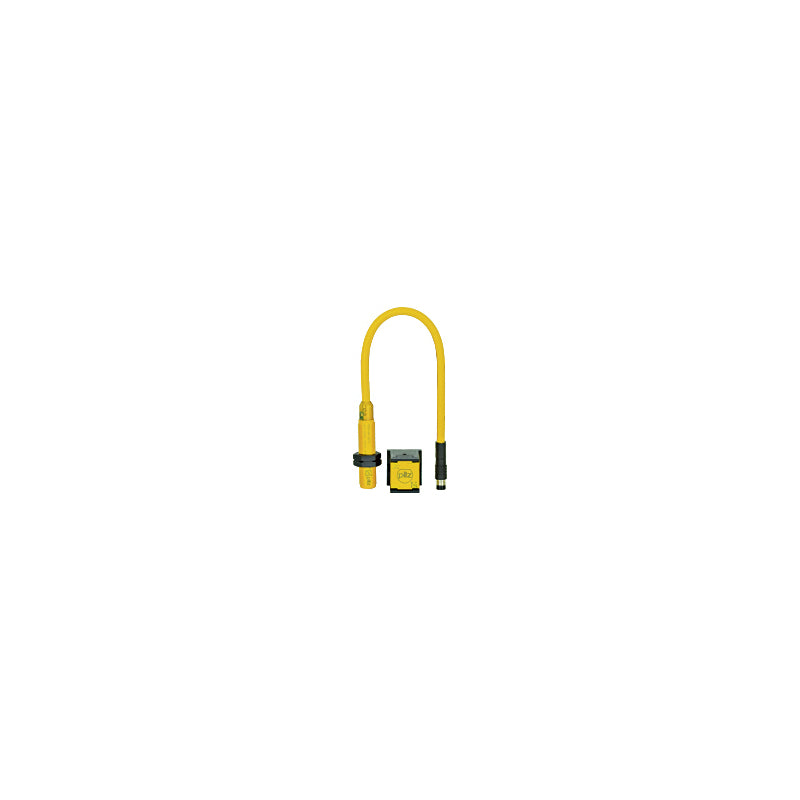

PILZ PSEN ma1.3p-22/PSEN ma1.3-12/12mm/ix1/1u

SUA00001357

Technical Data
Electrical Data
Supply voltage (V) 24 V
Type of supply voltage U1 DC
Switching voltage 24 V
Environmental Data
Ambient temperature -25 - 70 °C
Max. ambient temp. at 2000 m +70 °C
Climatic suitability standard IEC 60068-2-30
Humidity rating 93 % r. h. at 40 °C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Pollution degree clear.&creep. 3
Mechanical Data
Type 1 actuator PSEN ma1.3-12
Sensor can be flush-mounted Yes, follow installation guide
Connection type M8, 8-pin male
Cable lines Li9Y11Y 8 x 0.14 mm2
Housing material upper part PBT
Height dimension 11 mm
Width dimension 12 mm
Depth dimension 59.1 mm
Net weight 30 g
Gross weight 65 g
