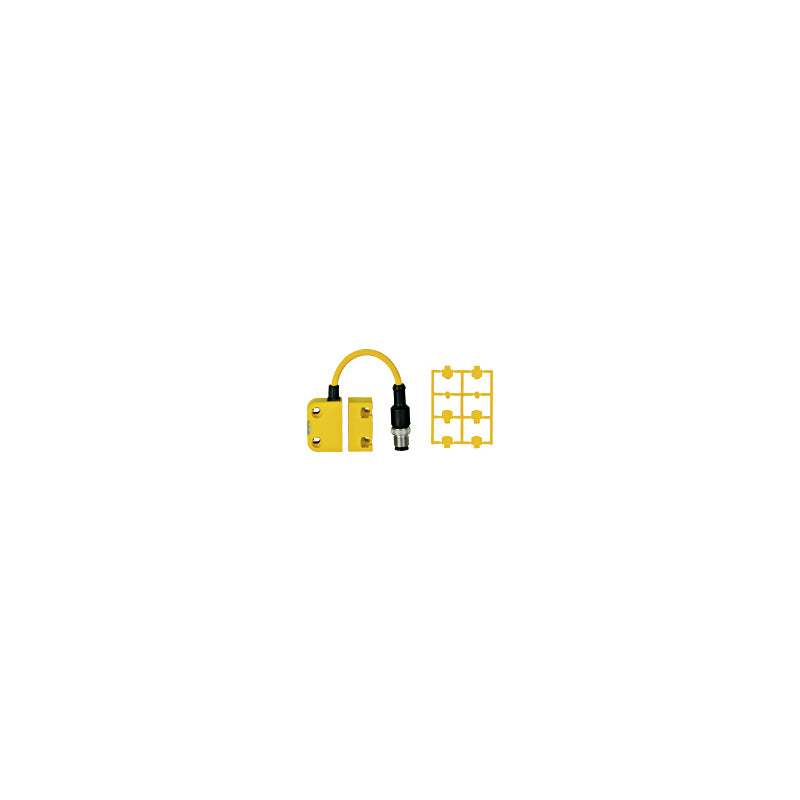

PILZ PSEN ma1.4n-50/PSEN ma1.4-10mm/ 1unit

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply voltage (V) 24 V
Type of supply voltage U1 DC
Switching voltage 24 V
Environmental Data
Ambient temperature -10 to 55 Ā°C
Max. ambient temp. at 2000 m +55 Ā°C
Climatic suitability standard IEC 60068-2-30
Humidity rating 93 % r. h. at 40 Ā°C
Perm. operating height ASL 4000 m
EMC to standard EN 60947-5-3
Vibration to standard EN 60947-5-2
Acc. shock to standard 30g
Pollution degree 3
Mechanical Data
Type 1 actuator PSEN ma1.4-10mm
Sensor can be flush-mounted Yes, follow installation guide
Connection type M12, 5-pin male
Cable lines LiY11Y 4 x 0.25 mm2
Housing material upper part PBT
Height dimension 37 mm
Width dimension 26.4 mm
Depth dimension 18 mm
Net weight 53 g
Gross weight 84 g
