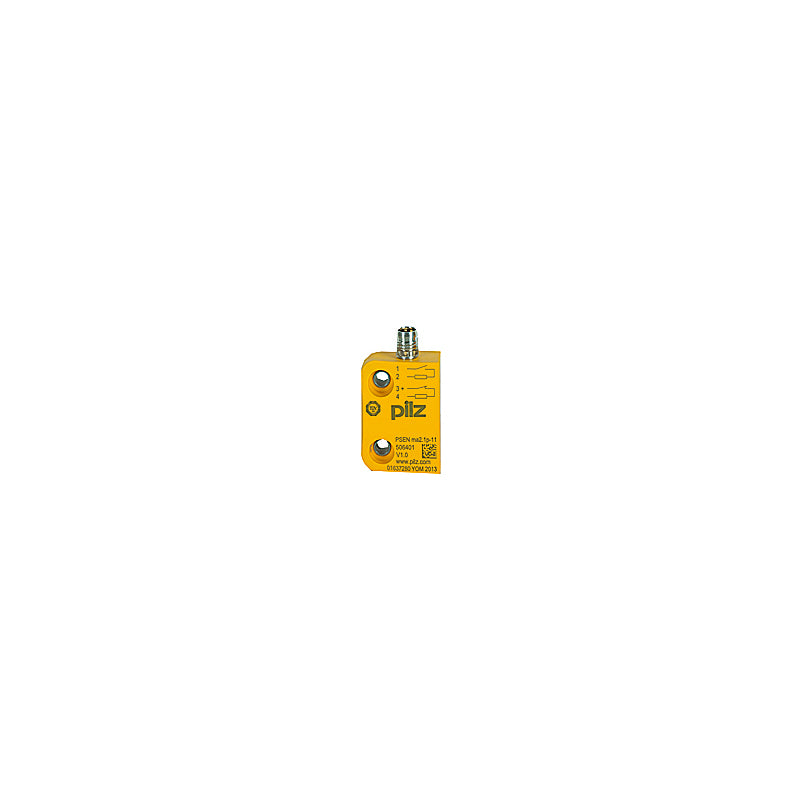

PILZ PSEN ma2.1p-11/LED/3mm/1switch

SUA00001476

Technical Data
Electrical Data
Supply voltage (V) : 24 V
Type of supply voltage U1 : DC
Switching voltage : 24 V
Environmental Data
Ambient temperature : -25 - 70 °C
Max. ambient temp. at 2000 m : +70 °C
Perm. operating height ASL : 4000 m
EMC to standard : EN 60947-5-3
Vibration to standard : EN 60947-5-2
Acc. shock to standard : 30g
Pollution degree clear. & creep. : 3
Protection type, housing : N/A
Mechanical Data
Type 1 actuator : PSEN 2.1-10
Sensor can be flush-mounted : Yes, follow installation guide
Connection type : M8, 4-pin male
Housing material upper part : PBT
Height dimension : 36 mm
Width dimension : 26 mm
Depth dimension : 13 mm
Net weight : 20 g
Gross weight : 25 g
