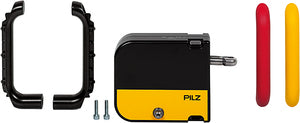

PILZ PSEN ml DHM up l 1.1

Write a review
Rs. 0.00

Technical Data

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature 0 - 60 Ā°C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r. h. at 40 Ā°C
EMC to standard EN 55011: Class A
EN 60947-5-3
EN 61326-3-1
Vibration to standard EN 60068-2-6
Acc. shock to standard 1 10g
Protection type, housing UL enclosure type: Type 1

Mechanical Data

Mech. service life Type 3 6050 cycles
Holding force FZh slide gate 2000 N
Holding force FZh swing gate 3000 N
Holding force F1Max slide gate 4000 N
Holding force F1Max swing gate 6000 N
Max. vertical offset +/-2.0 mm
Max. ang. offset round X axis +/-2.0 deg
Max. ang. offset round Y axis +/-2.5 deg
Max. ang. offset round Z axis +/-5.0 deg
Max. offset closing direction +/-5.0 mm
Product material Zn, Stainless steel, Plastic
Net weight 2050 g
Gross weight 2450 g
