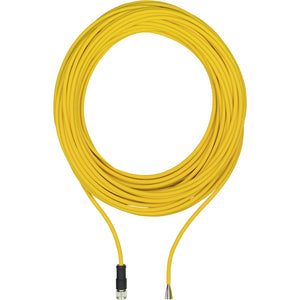

PILZ PSEN op cable angle M12 5-pole 30m

SUA00003717

Technical Data
Connector type 15-pin M12 female connector
Shape of connector type 1angled
Coding of M12 connector 1A coded
Contact surfaces material 1Au
Material of socketsCuSn
Cable material K1Cu
Insulation material cable K1PP (9Y)
Cable type K1LiF9Y11Y
Length cable30 m
Colour cable insulation 1Yellow, similar to RAL 1003
Housing colourBlack
Material of cable insulation 1TPU / TPE-U
Trailing capability of cable 1yes
Bend radius (when laying) K15 x Ø
Max. outside diameter cable K15.1 mm
Conductor cross section0.25 mm²
Cable cross section AWG K124
Stranding K15 cores round filler
Shielding K1no
Number of conductors5
Approvals for cable K1UL AWM-Style 20233
Approvals for connector 1UL94 V-0
Halogen-freeyes
Oil resistanceresistant
Flame resistanceUL VW1
Housing materialPUR
Net weight1023 g
Gross weight1033 g
