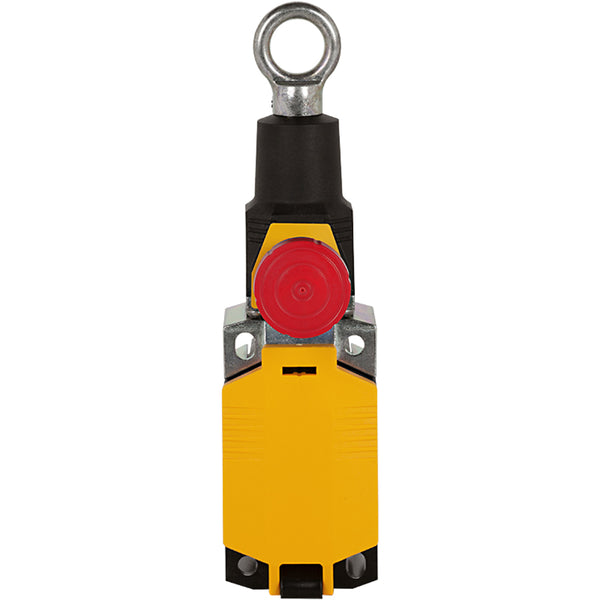

PILZ PSEN rsm 2.0-300-0-0-0

SUA00001277

Technical Data

Relay Outputs
Utilisation Cat. AC15/DC13sta. EN 60947-5-1
Voltage AC15 Safety Cont. 240 V
Max. Current AC15 Safety Cont. 3 A
Voltage DC13 Safety Cont. 250 V
Environmental Data
Ambient Temperature -30 - 75 °C
Mechanical Data
Housing Material Lower Section PA
Housing Material Upper Part PA
Material Actuator Zn Die Cast
Connection Terminal Screw Terminal
Height Dimension 42.5 mm
Width Dimension 151 mm
Depth Dimension 67 mm
Net Weight 246 g
Gross Weight 314 g
