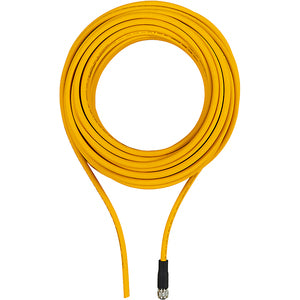

PILZ PSEN sc cable M12-17sf sh, 10m

Rs. 0.00

Technical Data
Connector type 117-pin M12 female connector
Shape of connector type 1straight
Coding of M12 connector 1A coded
Matl threaded ring conn 1CuZn nickel-plated
Contact surfaces material 1CuZn, gold-plated
Seal materialFKM
Material of socketsCuZn
Cable material K1Cu
Insulation material cable K1PP (9Y)
Length cable10 m
Tolerance of cable length K1
Material shield surface K1Cu
Colour cable insulation 1Signal yellow RAL1003
Housing colourBlack
Material of cable insulation 1
Trailing capability of cable 1no
Bend radius (when laying) K18 x Ƙ
Max. outside diameter cable K17.75 mm
Insulation mat. data cable K1PP
Insul. mat. supply cable K1PP
Diameter data line AWG K128
Cross section data cable K1
Cross section UB cable K1
Shielding K1yes
Type of shielding K1Braided tinned copper
Number of conductors17
Approvals for cable K1UL AWM-Style 20233
Approvals for connector 1UL
Halogen-freeyes
Oil resistanceresistant
Flame resistanceUL FT2
UL20233
Torque interlocking screw0.4 Nm
Net weight725 g
Gross weight730 g
