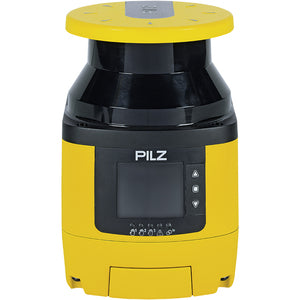

PILZ PSEN sc L 5.5 08-12

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC8 W
Optical Data
Used Wavelength Range905 nm
Scanning Area275Ā°
Max. Opening Angle Vertical0.12Ā°
Angular Resolution0.1Ā°
Inputs
Signal Level at Input at 0< 5 V
DC Voltage at Input24 V
Semiconductor Outputs
Number of OSSD Outputs4
Current "0" S/C O PSENscan< 700 ĀµA
Ethernet Interface
Connector Type ETHERNET Int.M12x1, 4-pin, D-code
Ethernet Transmission Rate100 MBit/s
CANopen Interface
Number of Ethernet Interfaces1
Environmental Data
Ambient Temperature-10 - 50 Ā°C
Humidity RatingMax. 95 %
Condensation Permitted?Not permitted
Perm. Operating Height ASL2000 m
Vibration to Standard...EN 60068-2-6
Acc. Shock to Standard110g
Protection Type, Housing
Times
Reaction Time62 ms
Rotation Time30
Mechanical Data
Connection Type
  • M12, 8-pin male
  • M12, 12-pin male
Housing MaterialAluminium
Housing Material Upper PartPC
Material Front ScreenPMMA
Height Dimension152 mm
Width Dimension102 mm
Depth Dimension112.5 mm
Net Weight1530 g
Gross Weight2140 g
