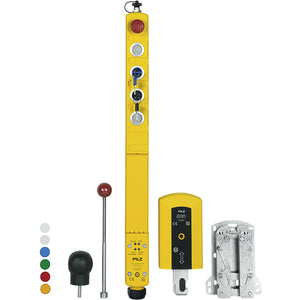

PILZ PSEN sg2c-5LBKLE-M12/5 unit

SUA00001854

Technical Data
Electrical Data
Supply Voltage (V) 24 V
Type of Supply Voltage U1 DC
Power Consumption DC 2 W
Inputs
Number of Inputs 2
U Input to EN 61131-2 Type 2 24 V DC
Emergency Stop
Number, E-STOP N/C 2
Release Type Emergency Stop Turn Release
Switch Cap. E-STOP to Standard EN 60947-5-1
Semiconductor Outputs
Number of OSSD Outputs 2
Number of Sig. Outputs 2
S/C Output Short Circuit Proof Yes
Button
Contact Material Button AgNi
Switch Cap. Button to Standard EN 60947-5-1
Environmental Data
Ambient Temperature Standard EN 60068-2-14
Ambient Temperature -20 - 55 °C
Storage Temperature Standard EN 60068-2-1/-2
Climatic Suitability Standard EN 60068-2-78
Humidity Rating 93 % r.h. at 40 °C
EMC to Standard EN 55011: Class A, EN 61000-4-8, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-2, EN 61000-4-3
Vibration to Standard EN 60068-2-6
Acc. Shock to Standard 30g
Overvoltage Category III
Pollution Degree Clear.&Creep. 3
Protection Type, Housing UL Enclosure Type - Type 1
Switching Distances
Change Op. Dist. Temp.Change ±0.01mm/°C
Mechanical Data
Escape Release Available Yes
Holding Force, Closing Movement 1000 N
Holding Force Pan Direction 2000 N
Max. Vertical Offset ±2.5 mm
Max. Angular Offset ±1.5 deg
Type 1 Actuator PSEN sg2 Actuator
Connection Type Pluggable Spring Terminal
Cable Lines LiYY 24 x 0.5 mm²
Housing Material Upper Part Plastic
Material Actuator Stainless Steel
Dimensions and Weight
Height Dimension 568 mm
Width Dimension 200 mm
Depth Dimension 108 mm
Net Weight 2690 g
Gross Weight 3060 g
Transponder
Operating Frequency 122 kHz - 128 kHz
