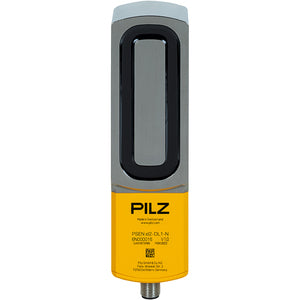

PILZ PSEN sl2-DL1-N switch

Write a review
Rs. 0.00

Technical Data

Electrical Data

Supply voltage (V) 24 V
Type of supply voltage U1 DC
Power consumption DC 7.5 W
Number of inputs 1
DC voltage at input 24 V DC
Number of OSSD outputs 2
S/C output short circuit proof Yes
Utilisation cat. to EN 60947-1 DC-13

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -20 - 60 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r. h. at 40 °C
Perm. operating height ASL 2000 m
EMC to standard EN 55011: Class A
EN 60947-5-3
EN 61326-3-1
Vibration to standard EN 60068-2-6
Acc. shock to standard 1 30g
Overvoltage category III
Pollution degree clear.&creep. 3
Protection type, housing N/A

Mechanical Data

Max. vertical offset 5 mm
Max. angular offset N/A
Type 1 actuator N/A
Type 2 actuator N/A
Sensor can be flush-mounted Yes, follow installation guide
Connection type M12, 5-pin male
Cable lines LiYY 5 x 0.25 mm²
Product material Coated steel, Plastic, Stainless steel
Housing material upper part PBT
Height dimension 170 mm
Width dimension 45 mm
Depth dimension 44 mm
Net weight 1467 g
Gross weight 1674 g

Transponder

Operating frequency 122 kHz - 128 kHz
