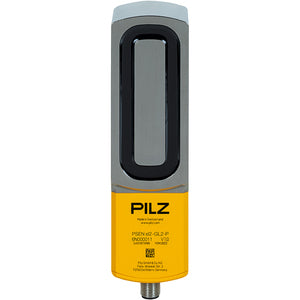

PILZ PSEN sl2-GL2-P switch

Write a review
Rs. 0.00

Technical Data

Electrical Data

Supply voltage (V) 24 V
Type of supply voltage U1 DC
Power consumption DC 7.5 W

Inputs

Number of inputs 2
DC voltage at input 24 V DC

Semiconductor Outputs

Number of OSSD outputs 2
Number of signal outputs 1
S/C output short circuit proof Yes
Utilisation category to EN 60947-1 DC-13

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -20 - 60 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r. h. at 40 °C
Perm. operating height ASL 2000 m
EMC to standard ... EN 55011: Class A
EN 60947-5-3
EN 61326-3-1
Vibration to standard ... EN 60068-2-6
Acc. shock to standard1 30g
Overvoltage category III
Pollution degree clear.&creep. 3
Protection type, housing

UL Enclosure Type

UL enclosure type Type 1

Mechanical Data

Max. vertical offset 5 mm
Sensor can be flush-mounted Yes, follow installation guide
Connection type M12, 8-pin male
Cable lines LiYY 8 x 0.25 mm²
Product material Coated steel, Plastic, Stainless steel
Housing material upper part PBT
Height dimension 170 mm
Width dimension 45 mm
Depth dimension 44 mm
Net weight 1467 g
Gross weight 1674 g

Transponder

Operating frequency 122 kHz - 128 kHz
