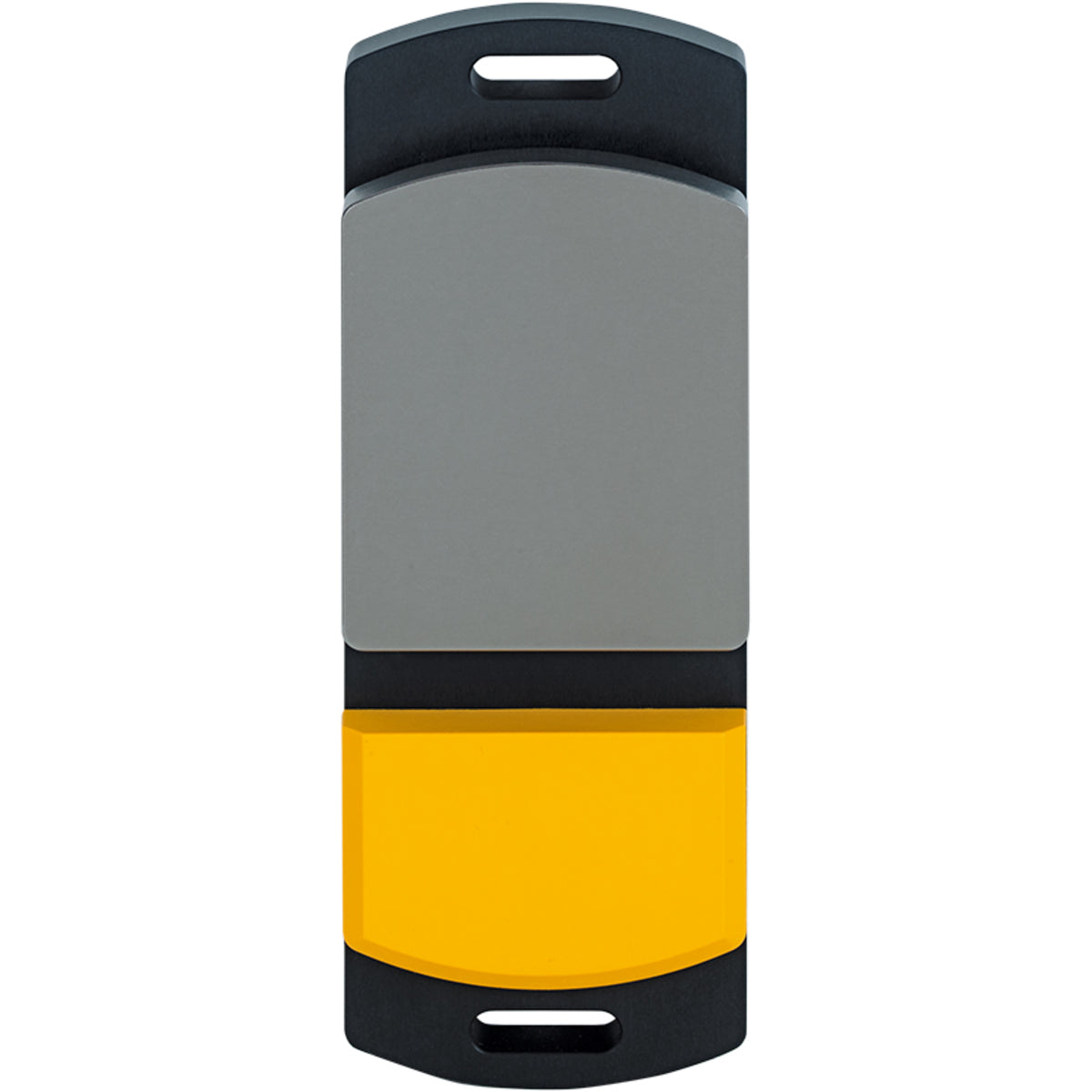

PILZ PSEN sl2-M-AL actuator

SUA00001738

Technical Data

Environmental Data

Ambient temperature standard EN 60068-2-14
Ambient temperature -20 - 60 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard EN 60068-2-78
Humidity rating 93 % r. h. at 40 °C
EMC to standard EN 55011: Class A
EN 60947-5-3
EN 61326-3-1
Vibration to standard EN 60947-5-2
Acc. shock to standard 1 30g
Acc. shock to standard 2 N/A
Protection type, housing N/A

Mechanical Data

Housing material upper part PBT
Material of anchor plate Nickel-plated steel
Material actuator N/A
Height dimension 138 mm
Width dimension 52 mm
Depth dimension 22.5 mm
Net weight 389 g
Gross weight 500 g
