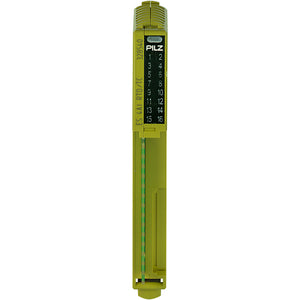

PILZ PSS u2 ES 4AI RTD/TC

SUA00003084

Technical Data
Analog Inputs
Number of Analog Inputs4
Type of Analog InputsThermistor, Thermocouple, Resistance thermometer
Signal Range Analog Input
  • Type N
  • Type R
  • Type S
  • Type T
  • Type E
  • Type J
  • Pt500
  • Type K
  • Ni120
  • Pt100
  • Pt200
  • Type B
  • Pt1000
Platinum Sensors StandardDIN EN 60751
Analog Input Signal Type 1Pt100
Analog Input Signal Type 2Pt200
Analog Input Signal Type 3Pt500
Type of Input FilterDigital filter
Resolution of Analog Inputs16 Bit
Conversion Method Analog InputDelta sigma
Potential Isolation Analog InputYes
Max. Processing Time Analog Input1.5 s
Environmental Data
Climatic Suitability to
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature0 - 60 °C
Storage Temperature StandardEN 60068-2-1/-2
Climatic Suitability StandardEN 60068-2-78
Humidity Rating93 % r.h. at 40 °C
Condensation Permitted?No
Perm. Operating Height ASL2000 m
EMC to StandardEN 61131-2 (Zone B)
Vibration to StandardEN 60068-2-6
Acc. Shock to Standard 1150 m/s²
Clearance & Creepage Dist. toEN 61131-2
Overvoltage CategoryII
Pollution Degree Clear. & Creep.2
Protection Type StandardEN 60529
Mechanical Data
Housing MaterialPC
Terminal StylePlug-in
Height Dimension110.8 mm
Width Dimension12.5 mm
Depth Dimension72.5 mm
Net Weight40 g
Gross Weight56 g
