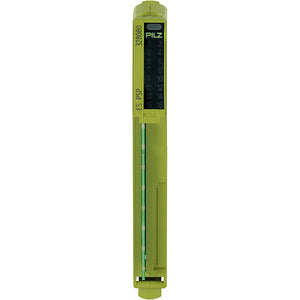

PILZ PSS u2 ES PSP -R

Write a review
Rs. 0.00

Technical Data
Electrical Data
Purpose of U2Periphery Supply
Supply Voltage 2 (V)24 V
Type of Supply Voltage U2DC
Tolerance of U2-30 % / +25 %
Relay Outputs
Utilisation Category AC/DC1 StandardEN 60947-4-1
Utilisation Category AC15/DC13 StandardEN 60947-5-1
Environmental Data
App. Site Standard 1 RailwayEN 50125-3
App. Site to Standard 1 RailwayTrack Area (1m - 3m)
App. Site Standard 2 RailwayEN 61373
App. Site to Standard 2 RailwayCategory 1, Class A + B
Climatic Suitability to
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature-40 - 70 Ā°C
Standard 2 for Ambient TemperatureEN 50125-1
Ambient Temp. to Standard 2-40 ... +70 Ā°C
Standard 3 for Ambient TemperatureEN 50125-3
Storage Temperature StandardEN 60068-2-1/-2
Humidity Rating95 % r.h. at 40 Ā°C
Condensation Permitted?No
Perm. Operating Height ASL5000 m
EMC to Standard
  • EN 50121-4
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61131-2 (Zone B)
Broad Band Noise toEN 60068-2-64
Standard 1 Broad Band Noise, RailEN 61373
Frequency Broadband Noise, Rail5 ... 150 Hz
Acceleration Broadband Noise, RailNot specified
Acc. Shock to Standard 120 m/sĀ²
Clearance & Creepage Dist. to 2EN 50124-1
Overvoltage Category 2OV2
Clearance & Creepage Dist. toEN 61131-2
Overvoltage CategoryII
Pollution Degree Clear. & Creep.2
Protection Type StandardEN 60529
Potential Separation
Potential Isolation 1 BetweenPeriphery and Module Supply
Type of Potential Isolation 1Functional Insulation
Mechanical Data
Housing MaterialPC
Terminal StylePlug-in
Height Dimension110.8 mm
Width Dimension12.5 mm
Depth Dimension77 mm
Net Weight32 g
Gross Weight41 g
