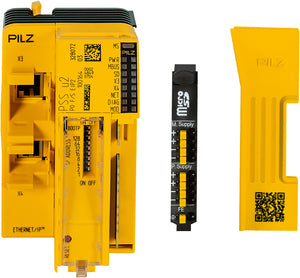

PILZ PSS u2 P0 F/S EIP2

SUA00003057

Technical Data
Electrical Data
Purpose of U1Module supply
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC28.8 W
Potential Isolation U1Yes
Purpose of U2Periphery supply
Supply Voltage 2 (V)24 V
Type of Supply Voltage U2DC
Tolerance of U2-30 %/+25 %
Potential Isolation U2Yes
Removable Storage MediaµSD card
EtherNet/IP Adapter
Device Type EtherNet/IPAdapter
Supported EtherNet/IP RPI1 ... 3200 ms
EtherNet/IP CertificationODVA
Trans. Rate EtherNet/IP100 MBit/s
CIP Safety SupportedYes
Supported CIPSafety RPI10 ... 3200 ms
Environmental Data
Climatic Suitability to
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature0 - 60 °C
Storage Temperature StandardEN 60068-2-1/-2
Climatic Suitability StandardEN 60068-2-78
Humidity Rating93 % r.h. at 40 °C
Condensation Permitted?Not permitted
Perm. Operating Height ASL2000 m
EMC to StandardEN 61131-2 (Zone B)
Vibration to StandardEN 60068-2-6
Acc. Shock to Standard1150 m/s²
Clearance & Creepage Dist. toEN 61131-2, UL/IEC 61010-2-201
Overvoltage CategoryII
Pollution Degree Clear. & Creep.2
Potential Separation
Potential Isolation 1 BetweenUB and periphery supply
Type of Potential Isolation 1Functional insulation
Potential Isolation 2 BetweenUB and module supply
Type of Potential Isolation 2Functional insulation
Potential Isolation 3 BetweenPeriphery and module supply
Type of Potential Isolation 3Functional insulation
Potential Isolation 4 BetweenModule supply and EtherNet/IP
Type of Potential Isolation 4Functional insulation
Mechanical Data
Housing Material Lower SectionPPE
Housing Material Upper PartPC
Connection TerminalSpring-loaded terminal
Terminal StylePlug-in
Height Dimension110.1 mm
Width Dimension64.1 mm
Depth Dimension94.7 mm
Net Weight230 g
Gross Weight235 g
