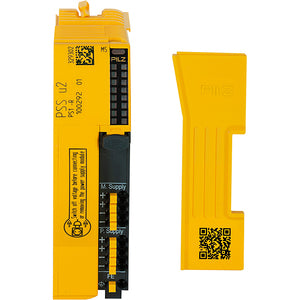

PILZ PSS u2 PS1 -R

SUA00003089

Technical Data
Electrical Data
Purpose of U1Module Supply
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC31 W
Purpose of U2Periphery Supply
Supply Voltage 2 (V)24 V
Type of Supply Voltage U2DC
Tolerance of U2-30 % / +25 %
Potential Isolation U2Yes
Environmental Data
App. Site Standard 1 RailwayEN 50125-3
App. Site to Standard 1 RailwayTrack Area (1m - 3m)
Climatic Suitability to
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature-40 - 70 °C
Storage Temperature StandardEN 60068-2-1/-2
Humidity Rating95 % r.h. at 40 °C
Condensation Permitted?No
Perm. Operating Height ASL5000 m
EMC to Standard
  • EN 50121-4
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61131-2 (Zone B)
Broad Band Noise toEN 60068-2-64
Acc. Shock to Standard 120 m/s²
Clearance & Creepage Dist. toEN 61131-2
Overvoltage CategoryII
Pollution Degree Clear. & Creep.2
Protection Type StandardEN 60529
Potential Separation
Potential Isolation 1 BetweenUB and Periphery Supply
Type of Potential Isolation 1Functional Insulation
Potential Isolation 2 BetweenUB and Module Supply
Type of Potential Isolation 2Functional Insulation
Potential Isolation 3 BetweenPeriphery and Module Supply
Type of Potential Isolation 3Functional Insulation
Mechanical Data
Housing MaterialPC
Connection TerminalSpring-loaded Terminal
Terminal StylePlug-in
Height Dimension109.3 mm
Width Dimension31.3 mm
Depth Dimension95.4 mm
Net Weight138 g
Gross Weight147 g
