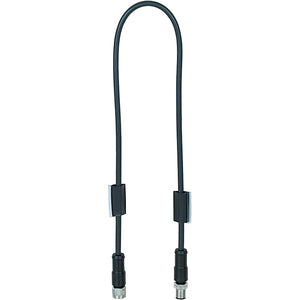

PILZ PSS67 Supply Cable IN sf OUT sm, B, 0.5m

Write a review
Rs. 0.00

Technical Data
Connector type 15-pin M12 female connector
Shape of connector type 1Straight
Coding of M12 connector 1
Connector type 25-pin M12 male connector
Shape of connector type 2Straight
Coding of M12 connector 2
Contact surfaces material 1Au
Contact surfaces material 2Au
Material of pinsCuZn
Material of socketsCuSn
Cable materialCu
Insulation material cablePP9P
Cable typeLi9YH-11YH
Length cable0.5 m
Colour cable insulation 1Black, similar to RAL9005
Housing colourBlack
Material of cable insulation 1TPU / TPE-U, PUR
Trailing capability of cableYes
Bend radius (when laying)5 x Ƙ
Max. outside diameter cable6.2 mm
Conductor cross section0.5 mmĀ²
Cable cross section AWG20
Stranding5 cores round PP splice yarn
ShieldingNo
Number of conductors5
Approvals for cableUL AWM-Style 20549
Halogen-freeYes
Oil resistanceResistant
Flame resistanceUL 1581, CSA 22.2 FT2
Housing materialPUR
Net weight50 g
Gross weight61 g
