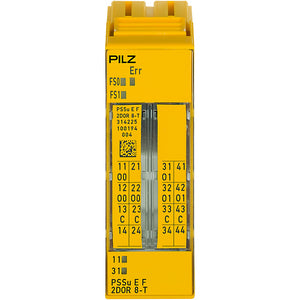

PILZ PSSu E F 2DOR 8-T

Write a review
Rs. 0.00

Technical Data
Electrical Data
Permitted loads
  • Resistive
  • Inductive
Relay Outputs
Number of relay outputs2
Utilisation category AC/DC1 standardEN 60947-4-1
Voltage AC1 safety contact250 V
Max. current AC1 safety contact8 A
Voltage DC1 safety contact24 V
Max. current DC1 safety contact8 A
Utilisation category AC15/DC13 standardEN 60947-5-1
Voltage AC15 safety contact230 V
Max. current AC15 safety contact3 A
Voltage DC13 safety contact24 V
Safety contacts: AC at UL250 VAC G.U. (same polarity)
Safety contacts: pilot dutyB300, R300
Process time relay output ON20 - 60 ms
Relay contact materialAgCuNi
Additional contact details relay+ 0.2 Āµm Au
Potential isolation relay contact to Uint14900 V (safe separation)
Potential isolation relay contact to U24900 V (safe separation)
Potential isolation relay contact 1 to CRail3050 V (basic insulation)
Potential isolation relay contact 1 to relay contact 24900 V (safe separation)
Environmental Data
Climatic suitability to ...
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient temperature standardEN 60068-2-14
Ambient temperature-40 - 70 Ā°C
Ambient temperature with UL60 Ā°C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-78
Humidity rating93 % r.h. at 40 Ā°C
Condensation permitted?
Perm. operating height ASL5000 m
EMC to standard ...
  • EN 12015
  • EN 12016
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61131-2 (Zone B)
Vibration to standard ...EN 60068-2-6
Broad band noise toEN 60068-2-64
Acc. shock to standard1150 m/sĀ²
Acc. shock to standard2
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear. & creep.2
Protection type standardEN 60529
Protection type, mounting
Protection type, housing
Terminal protection type
Potential Separation
Potential isolation 1 betweenSafe separation
Potential isolation 2 betweenSafe separation
Potential isolation 3 betweenSafe separation
Potential isolation 4 betweenSafe separation
Mechanical Data
Housing material lower sectionPC
Housing material front platePC
Housing material codePA
Terminal stylePlug-in
Height dimension76 mm
Width dimension25.2 mm
Depth dimension60.2 mm
Net weight91 g
Gross weight100 g
Name of coding elementH
Colour of coding elementYellow
