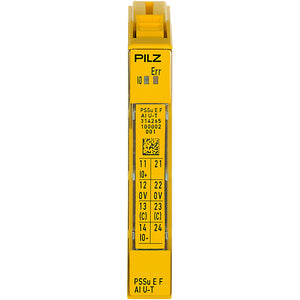

PILZ PSSu E F AI U-T

Write a review
Rs. 0.00

Technical Data
Analog Inputs
Number of analogue inputs1
Type of analogue inputsVoltage
Signal range analog input-10.24 V to +10.2375 V
Type of input filterRC filter
Value least significant bit U-Me2.5 mV
Resolution of analogue inputs13 Bit
Conversion method analog i/pSuccessive approximation
Potential isolation analog inp.Yes
Inputs
Potential isolation inputsYes
Environmental Data
Climatic suitability to ...
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient temperature standardEN 60068-2-14
Ambient temperature-40 - 70 Ā°C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-78
Humidity rating93 % r.h. at 40 Ā°C
Condensation permitted?
Perm. operating height ASL5000 m
EMC to standard ...
  • EN 12015
  • EN 12016
  • EN 61131-2
  • EN 61000-6-2
  • EN 61000-6-4
Vibration to standard ...EN 60068-2-6
Broad band noise toEN 60068-2-64
Acc. shock to standard1150 m/sĀ²
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear. & creep.2
Protection type standardEN 60529
Protection type, mounting
Protection type, housing
Terminal protection type
Mechanical Data
Housing material lower sectionPC
Housing material front platePC
Housing material codePA
Terminal stylePlug-in
Height dimension76 mm
Width dimension12.6 mm
Depth dimension60.2 mm
Net weight37 g
Gross weight46 g
Name of coding elementM
Colour of coding elementYellow
