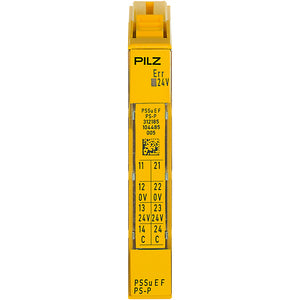

PILZ PSSu E F PS-P

SUA00002973

Technical Data
Electrical Data
Purpose of U2Periphery supply
Supply Voltage 2 (V)24 V
Type of Supply Voltage U2DC
Tolerance of U2-30 % / +25 %
Potential Isolation UINT1 to U2
Potential Isolation U1 to U22500 V
Bridge U-Interrupt UINT1 StandardEN 61131-2
Environmental Data
Climatic Suitability to
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient Temperature0 - 60 °C
Climatic Suitability StandardEN 60068-2-78
Humidity Rating93 % r.h. at 40 °C
Condensation Permitted?Not permitted
Perm. Operating Height ASL2000 m
EMC to Standard
  • EN 61131-2
  • EN 61000-6-2
  • EN 61000-6-4
Vibration to StandardEN 60068-2-6
Acc. Shock to Standard 1150 m/s²
Acc. Shock to Standard 2
Clearance & Creepage Dist. toEN 61131-2
Overvoltage CategoryII
Pollution Degree Clear. & Creep.2
Protection Type Standard
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Housing Material Lower SectionPC
Housing Material Front PlatePC
Housing Material CodePA
Terminal StylePlug-in
Height Dimension76 mm
Width Dimension12.6 mm
Depth Dimension60.2 mm
Net Weight33 g
Gross Weight42 g
Name of Coding ElementA
Colour of Coding ElementYellow
