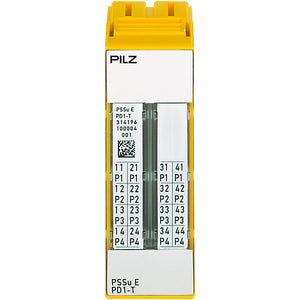

PILZ PSSu E PD1-T

Write a review
Rs. 0.00

Technical Data
Environmental Data
Climatic Suitability to EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature-40 - 70 Ā°C
Storage Temperature StandardEN 60068-2-1/-2
Climatic Suitability StandardEN 60068-2-30, EN 60068-2-78
Humidity Rating93 % r.h. at 40 Ā°C
Condensation Permitted?Briefly
Perm. Operating Height ASL5000 m
EMC to Standard
  • EN 61000-6-2
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-6-4
  • EN 61000-4-6
  • EN 61000-4-2
  • EN 61000-4-3
Vibration to StandardEN 60068-2-6
Acc. Shock to Standard 115g
Acc. Shock to Standard 2
Clearance & Creepage Dist. toEN 60664-1
Overvoltage CategoryII
Pollution Degree Clear. & Creep.2
Protection Type Standard
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Housing Material Lower SectionPC
Housing Material Front PlatePC
Housing Material CodePA
Terminal StylePlug-in
Height Dimension76 mm
Width Dimension25.2 mm
Depth Dimension60.2 mm
Net Weight43 g
Gross Weight59 g
Name of Coding ElementA
Colour of Coding ElementLight Grey
