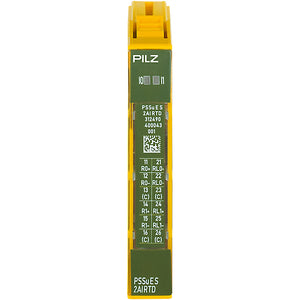

PILZ PSSu E S 2AI RTD

SUA00002906

Technical Data
Analog Inputs
Number of analogue inputs 2
Type of analogue inputs Resistance thermometer
Signal range analog input
  • Pt100
  • Pt200
  • Resistance
  • Ni1000
  • Pt500
  • Ni100
  • Pt1000
  • Ni120
Platinum sensors standard DIN EN 60751
Analog input signal type 1 Pt100
Analog input signal range 1 -200 - 850 °C
Analog input signal type 2 Pt200
Analog input signal range 2 -200 - 850 °C
Analog input signal type 3 Pt500
Analog input signal range 3 -200 - 850 °C
Analog input signal type 4 Pt1000
Analog input signal range 4 -200 - 850 °C
Analog input signal type 5 Ni100
Analog input signal range 5 -60 - 250 °C
Analog input signal type 6 Ni120
Analog input signal range 6 -60 - 250 °C
Analog input signal type 7 Ni1000
Analog input signal range 7 -60 - 250 °C
Analog input signal type 8 Resistance
Analog input signal range 8 0 - 4000 Ohm
Type of input filter Digital filter
Damping of input filter 90 dB (60 Hz)
Conversion method analog input Delta sigma
Potential isolation analog input Yes
Environmental Data
Climatic suitability to ...
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient temperature standard EN 60068-2-14
Ambient temperature 0 - 60 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Humidity rating 93 % r. h. at 40 °C
Condensation permitted? Not permitted
Perm. operating height ASL 2000 m
EMC to standard ...
  • EN 61131-2
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-2
  • EN 61000-4-3
Vibration to standard ... EN 60068-2-6
Acc. shock to standard 1 15g
Clearance & creepage dist. to EN 60664-1
Overvoltage category II
Pollution degree clearance & creep. 2
Protection type standard EN 60529
Mechanical Data
Housing material lower section PC
Housing material front plate PC
Housing material code PA
Height dimension 76 mm
Width dimension 12.6 mm
Depth dimension 60.2 mm
Net weight 35 g
Gross weight 44 g
Name of coding element G
Colour of coding element Dark grey
