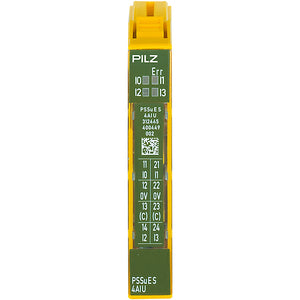

PILZ PSSu E S 4AI U

SUA00002897

Technical Data
Analog Inputs
Number of analogue inputs 4
Type of analogue inputs Voltage
Signal range analog input 0 .. 10V (single-ended)
Analog input signal type 1 Single-ended
Analog input Signal range 1 0 - 10 V
Type of input filter RC filter
Resolution of analogue inputs 12 Bit
Conversion method analog input Successive approximation
Potential isolation analog input Yes
Potential isolation inputs Yes
Environmental Data
Climatic suitability to ...
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient temperature standard EN 60068-2-14
Ambient temperature 0 - 60 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Humidity rating 93 % r. h. at 40 °C
Condensation permitted? Not permitted
Perm. operating height ASL 2000 m
EMC to standard ...
  • EN 61000-4-4
  • EN 61000-6-2
  • EN 61000-4-5
  • EN 61000-6-4
  • EN 61000-4-6
  • EN 61000-4-2
  • EN 61000-4-3
Vibration to standard ... EN 60068-2-6
Acc. shock to standard 1 15g
Clearance & creepage dist. to EN 60664-1
Overvoltage category II
Pollution degree clearance & creep. 2
Protection type standard EN 60529
Mechanical Data
Housing material lower section PC
Housing material front plate PC
Housing material code PA
Terminal style Plug-in
Height dimension 76 mm
Width dimension 12.6 mm
Depth dimension 60.2 mm
Net weight 37 g
Gross weight 45 g
Name of coding element D
Colour of coding element Dark grey
