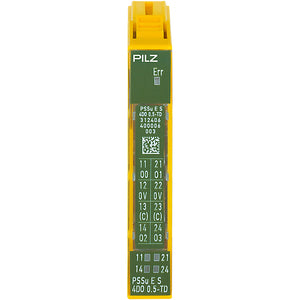

PILZ PSSu E S 4DO 0.5-TD

Write a review
Rs. 0.00

Technical Data
Semiconductor Outputs
DC voltage at output 24 V DC
Potential isolation S/C O Yes
S/C output short circuit proof Yes
Perm. load 1pole Output
  • Resistive
  • Inductive
  • Capacitive
Environmental Data
Climatic suitability to ...
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient temperature standard EN 60068-2-14
Ambient temperature -40 - 70 Ā°C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Humidity rating 93 % r. h. at 40 Ā°C
Condensation permitted? Briefly
Perm. operating height ASL 5000 m
EMC to standard ...
  • EN 61131-2
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-2
  • EN 61000-4-3
Vibration to standard ... EN 60068-2-6
Acc. shock to standard 1 15g
Acc. shock to standard 2 25g
Clearance & creepage dist. to EN 60664-1
Overvoltage category II
Pollution degree clearance & creep. 2
Protection type standard EN 60529
Mechanical Data
Housing material lower section PC
Housing material front plate PC
Housing material code PA
Height dimension 76 mm
Width dimension 12.6 mm
Depth dimension 60.2 mm
Net weight 34 g
Gross weight 48 g
Name of coding element B
Colour of coding element Dark grey
