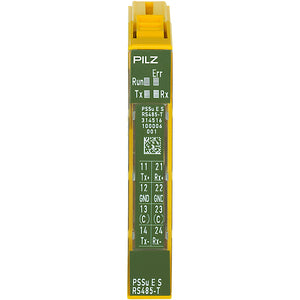

PILZ PSSu E S RS485-T

SUA00002909

Technical Data
Serial Interface
Number of RS 485 interfaces 1
Environmental Data
Climatic suitability to ...
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient temperature standard EN 60068-2-14
Ambient temperature -40 - 70 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Humidity rating 93 % r. h. at 40 °C
Condensation permitted? Briefly
Perm. operating height ASL 5000 m
EMC to standard ...
  • EN 61131-2
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-2
  • EN 61000-4-3
Vibration to standard ... EN 60068-2-6
Acc. shock to standard 1 15g
Acc. shock to standard 2
Clearance & creepage dist. to EN 60664-1
Overvoltage category II
Pollution degree clearance & creep. 2
Protection type standard EN 60529
Mechanical Data
Housing material lower section PC
Housing material front plate PC
Housing material code PA
Terminal style Plug-in
Height dimension 76 mm
Width dimension 12.6 mm
Depth dimension 60.2 mm
Net weight 36 g
Gross weight 44 g
Name of coding element L
Colour of coding element Dark grey
