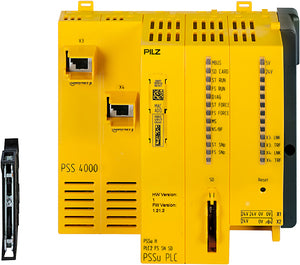

PILZ PSSu H PLC2 FS SN SD

Write a review
Rs. 0.00

Technical Data
Electrical Data
Purpose of U1Module supply
Supply voltage (V)24 V
Type of supply voltage U1DC
Power consumption DC17 W
Purpose of U2Periphery supply
Supply voltage 2 (V)24 V
Type of supply voltage U2DC
Tolerance of U2-30 % / +25 %
Pot. isolation UINT1 to U2P_UINT1_5V_U_2_POT_TRENN_2000 V
Potential isolation U1 to U2P_U_1_U_2_POT_TRENN_2000 V
Purpose of UINT1int. system voltage
Type of UINT1DC
Tolerance of UINT1-2 % / +3 %
Max. curr. contin. oper. UINT12 A
Bridge U-interrupt UINT1 stan.P_UEBER_SP_EINB_UINT1_5V_NORM_EN 61131-2
UINT1 short circuit proofYes
Programming
IEC 61131 programmingYes
Multi programmingYes
Non-volatile variablesYes
CPU
Time deviation+/- 10s/day
RAM256 MB
User memory total4 MB
NV user memory FS section382 kB
Removable Storage Media
Plug-in memorySD card
SafetyNET p Interface
Connector type Safetynet i/fRJ45
Safetynet transmission rate100 MBit/s
Setting SafetyNet trans. rateAutomatic
SafetyNET p cycle time2 ... 60 000 ms
PROFINET Interface
Settable trans. rate PROFINET100 MBit/s
Trans. rate setting PROFINETAutomatic
PROFINET certificationPNO
PROFINET manufacturer ID092Fh
Connector type PROFINET i/fRJ45
PROFINET typeSlave
Cycle time PROFINET IO DEVICE4 ... 512 ms
Modbus/TCP
MODBUS cycle time2 ... 2 000 000 ms
EtherNet/IP Adapter
Cycle time EtherNet/IP4 ... 655 000 ms
EDS file EtherNet/IP00B5000C00010100.eds
Device type EtherNet/IPAdapter
Supported EtherNet/IP RPI4 ... 655 000 ms
Raw UDP
RAW UDP cycle time2 ... 2 000 000 ms
Environmental Data
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient temperature0 - 60 Ā°C
Climatic suitability standardEN 60068-2-78
Humidity rating93 % r.h. at 40 Ā°C
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standard ...
  • EN 61000-6-2
  • EN 61000-6-4
  • EN EN 61131-2 (Zone B)
EMC to standard ...EN 61000-6-2, EN 61000-6-4, EN 61131-2 (Zone B)
Vibration to standard ...EN 60068-2-6
Acc. shock to standard 1150 m/sĀ²
Acc. shock to standard 2
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear. & creep.2
Protection type, mounting
Protection type, housing
Potential Separation
Potential isolation 1 betweenPeriphery and module supply
Type of potential isolation 1Functional insulation
Potential isolation 2 betweenPeriphery supply & system V.
Type of potential isolation 2Functional insulation
Mechanical Data
Housing material lower sectionPC
Connection terminal
  • Spring-loaded terminal
  • Screw terminal
Terminal styleplug-in
Flex. cond. c/s AWG info24 - 12 AWG
Height dimension125.6 mm
Width dimension130 mm
Depth dimension83.7 mm
Net weight345 g
Gross weight385 g
