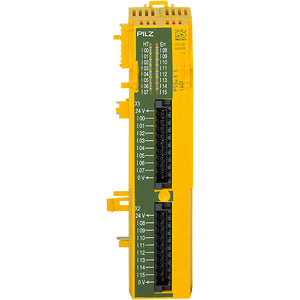

PILZ PSSu K S 16DI

SUA00002914

Technical Data
Inputs
Number of digital inputs 16
U input to EN 61131-2 Type 1 24 V DC
Potential isolation inputs Yes
Environmental Data
Climatic suitability to ...
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient temperature standard EN 60068-2-14
Ambient temperature 0 - 60 °C
Storage temperature standard EN 60068-2-1/-2
Climatic suitability standard
  • EN 60068-2-30
  • EN 60068-2-78
Humidity rating 93 % r. h. at 40 °C
Condensation permitted? Not permitted
Perm. operating height ASL 2000 m
EMC to standard ...
  • EN 55011: Class A
  • EN 61000-4-8
  • EN 61000-4-11
  • EN 61000-4-9
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-2
  • EN 61000-4-3
Vibration to standard ... EN 60068-2-6
Acc. shock to standard 1 15g
Acc. shock to standard 2 Not specified
Clearance & creepage dist. to EN 61131-2
Overvoltage category II
Pollution degree clearance & creep. 2
Protection type standard EN 60529
Mechanical Data
Housing material lower section PC
Housing material front plate PC
Housing material label holder PC
Terminal style Plug-in
Height dimension 128.9 mm
Width dimension 30 mm
Depth dimension 56 mm
Net weight 87 g
Gross weight 100 g
