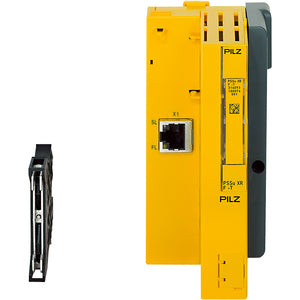

PILZ PSSu XR F -T

SUA00003040

Technical Data
Environmental Data
Climatic Suitability to
  • EN 60068-2-30
  • EN 60068-2-2
  • EN 60068-2-1
  • EN 60068-2-78
  • EN 60068-2-14
Ambient Temperature StandardEN 60068-2-14
Ambient Temperature-40 - 70 °C
Storage Temperature StandardEN 60068-2-1/-2
Climatic Suitability StandardEN 60068-2-78
Humidity Rating93 % r.h. at 40 °C
Condensation Permitted?Briefly
Perm. Operating Height ASL5000 m
EMC to Standard
  • EN 61131-2
  • EN 61000-6-2
  • EN 61000-6-4
Vibration to StandardEN 60068-2-6
Acc. Shock to Standard1150 m/s²
Acc. Shock to Standard2
Clearance & Creepage Dist. toEN 61131-2
Overvoltage CategoryII
Pollution Degree Clear. & Creep.2
Protection Type StandardEN 60529
Protection Type, Mounting
Protection Type, Housing
Mechanical Data
Housing Material Lower SectionPC
Housing Material Front PlatePC
Terminal StylePlug-in
Height Dimension125.6 mm
Width Dimension50.2 mm
Depth Dimension72.6 mm
Net Weight115 g
Gross Weight140 g
