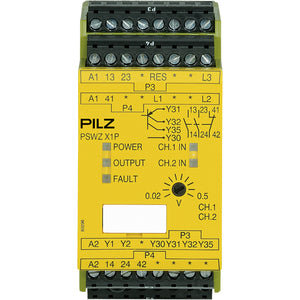

PILZ PSWZ X1P 0,5V /24-240VACDC 2n/o 1n/c 2so

SUA00002464

Technical Data
Electrical Data
Supply Voltage (V)24 - 240 V
Type of Supply Voltage U1AC/DC
Power Consumption AC5 VA
Power Consumption DC4 W
Measuring Circuit
Measuring Circuit Frequency Range (Hz)0 - 3000 Hz
Set Range Response Value Uon20 - 500 mV
Reset Value Uoff2 x Uon
Semiconductor Outputs
Number of Semiconductor Outputs2
Tolerance External Voltage DC S/C-20 %/+20 %
Utilisation Category to EN 60947-1DC-12
Relay Outputs
Utilisation Category AC/DC1 StandardEN 60947-4-1
Voltage AC1 Safety Contact240 V
Max Current AC1 Safety Contact6 A
Voltage DC1 Safety Contact24 V
Max Current DC1 Safety Contact6 A
Utilisation Category AC15/DC13 StandardEN 60947-5-1
Voltage AC15 Safety Contact230 V
Max Current AC15 Safety Contact3 A
Voltage DC13 Safety Contact24 V
Safety Contacts: AC at UL240 VAC G.P.
Relay Contact MaterialAgCuNi
Additional Contact Details Relay+ 0.2 µm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 °C
Humidity Rating93 % r.h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Distances toEN 60947-1
Overvoltage CategoryIII / II
Pollution Degree2
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Mounting PositionAny
Housing Material Lower Section
Housing Material Front PlateABS UL 94 V0
Housing Material Upper Part
Connection TerminalScrew Terminal
Terminal StylePlug-in
Flexible Conductor Cross Section (AWG)24 - 14 AWG
Height Dimension94 mm
Width Dimension45 mm
Depth Dimension121 mm
Net Weight325 g
Gross Weight330 g
