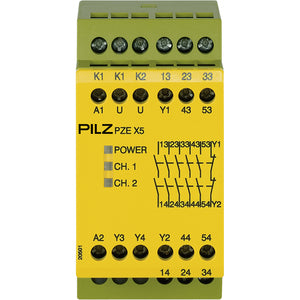

PILZ PZE X5 24VDC 5n/o

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC3.5 W
Number of Inputs2
Number of Semiconductor Outputs0
Relay Outputs
Utilisation Category AC/DC1 StandardEN 60947-4-1
Voltage AC1 Safety Cont.240 V
Max. Current AC1 Safety Cont.8 A
Voltage DC1 Safety Cont.24 V
Max. Current DC1 Safety Cont.8 A
Utilisation Category AC15/DC13 StandardEN 60947-5-1
Voltage AC15 Safety Cont.230 V
Max. Current AC15 Safety Cont.5 A
Voltage DC13 Safety Cont.24 V
Safety Contacts: AC at UL240 VAC G. P.
Safety Contacts: Pilot DutyB300, R300
Relay Contact MaterialAgSnO2
Additional Contact Details Relay+ 0.2 Āµm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 Ā°C
Humidity Rating93 % r. h. at 40 Ā°C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Distances toEN 60947-1
Overvoltage CategoryIII / II
Pollution Degree2
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Mounting PositionAny
Housing Material Lower Section
Housing Material Front PlateABS UL 94 V0
Housing Material Upper Part
Connection TerminalScrew terminal
Terminal StyleFixed
Flexible Conductor c/s AWG Info24 - 10 AWG
Height Dimension87 mm
Width Dimension45 mm
Depth Dimension121 mm
Net Weight270 g
Gross Weight280 g
