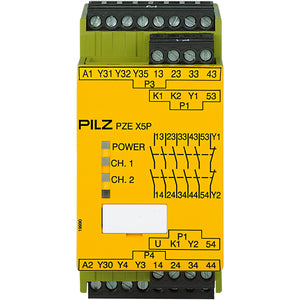

PILZ PZE X5P 24VDC 5n/o 2so

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC3.5 W
Number of Inputs2
Number of Semiconductor Outputs2
Tolerance External Voltage DC S/C-20 % / +20 %
Utilisation Category to EN 60947-1DC-12
Relay Outputs
Utilisation Category AC/DC1 StandardEN 60947-4-1
Voltage AC1 Safety Contact240 V
Max. Current AC1 Safety Contact8 A
Voltage DC1 Safety Contact24 V
Max. Current DC1 Safety Contact8 A
Utilisation Category AC15/DC13 StandardEN 60947-5-1
Voltage AC15 Safety Contact230 V
Max. Current AC15 Safety Contact5 A
Voltage DC13 Safety Contact24 V
Safety Contacts: AC at UL240 VAC G. P.
Safety Contacts: Pilot DutyB300, R300
Relay Contact MaterialAgSnO2
Additional Contact Details Relay+ 0.2 Āµm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 Ā°C
Humidity Rating93 % r. h. at 40 Ā°C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Distances toEN 60947-1
Overvoltage CategoryIII / II
Pollution Degree2
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Mounting PositionAny
Housing Material Lower Section
Housing Material Front PlateABS UL 94 V0
Housing Material Upper Part
Connection TerminalScrew terminal
Terminal StylePlug-in
Flexible Conductor c/s AWG Info24 - 12 AWG
Height Dimension94 mm
Width Dimension45 mm
Depth Dimension121 mm
Net Weight260 g
Gross Weight270 g
