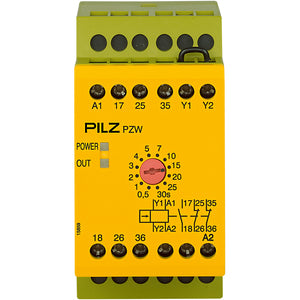

PILZ PZW 30/24VDC 1n/o 2n/c

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply Voltage (V)24 V
Type of Supply Voltage U1DC
Power Consumption DC3 W
Max. Device Circuit Breaker
Max. Conductor Cross Section
Relay Outputs
Number of Del. Aux. Contacts2
Utilisation Category AC/DC1 StandardEN 60947-4-1
Voltage AC1 Safety Contact240 V
Max Current AC1 Safety Contact6 A
Voltage DC1 Safety Contact24 V
Max Current DC1 Safety Contact6 A
Utilisation Category AC15/DC13 StandardEN 60947-5-1
Voltage AC15 Safety Contact230 V
Max Current AC15 Safety Contact4 A
Voltage DC13 Safety Contact24 V
Safety Contacts: AC at UL240 VAC G.P.
Safety Contacts: Pilot DutyB300, R300
Relay Contact MaterialAgSnO2
Additional Contact Details Relay+ 0.2 µm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-10 - 55 °C
Humidity Rating93 % r.h. at 40 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
  • EN 61326-3-1
Vibration to StandardEN 60068-2-6
Clearance & Creepage Distances toEN 60947-1
Overvoltage CategoryIII / II
Pollution Degree2
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Times
Selectable Times
  • 7 s
  • 20 s
  • 3 s
  • 30 s
  • 5 s
  • 4 s
  • 15 s
  • 25 s
  • 1 s
  • 2 s
  • 0.5 s
  • 10 s
Tolerance Tv-15 % / +15 % +50 ms
Repetition Accuracy2 %
Max. Delay Time Formulatv + 15 % + 50 ms
Mechanical Data
Mounting PositionAny
Housing Material Lower Section
Housing Material Front PlateABS UL 94 V0
Housing Material Upper Part
Connection TerminalScrew terminal
Terminal StyleFixed
Flexible Conductor Cross-section AWG Info24 - 10 AWG
Height Dimension87 mm
Width Dimension45 mm
Depth Dimension121 mm
Net Weight255 g
Gross Weight265 g
