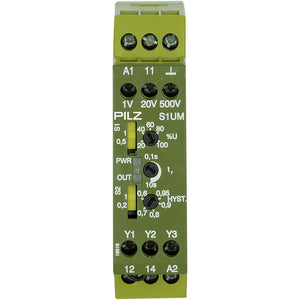

PILZ S1UM 110-130VAC UM 0.1-500VAC/DC

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply Voltage (V)42 - 48 V
Type of Supply Voltage U1AC
Power Consumption AC2 VA
Max. Device Circuit Breaker
Max. Conductor Cross Section
Relay Outputs
Utilisation Cat. AC/DC1 Stand.EN 60947-4-1
Utilisation Cat. AC15/DC13 Stand.EN 60947-5-1
Safety Contacts: AC at UL240 VAC Res. NO Side Only
Safety Contacts: Pilot DutyB300, R300
Relay Contact MaterialAgCdO
Additional Contact Details Relay+ 3.0 Āµm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature-15 - 55 Ā°C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 60947-5-1
  • EN 61000-6-2
Vibration to StandardEN 60068-2-6
Clearance & Creepage Dist. toEN 60947-1
Protection Type
Protection Type, Mounting
Protection Type, Housing
Terminal Protection Type
Mechanical Data
Mounting PositionAny
Housing Material Lower SectionPPO UL 94 V0
Housing Material Front PlateABS UL 94 V0
Housing Material Upper PartPPO UL 94 V0
Connection TerminalScrew terminal
Terminal StyleFixed
Flexible Cond. C/S AWG Info24 - 10 AWG
Height Dimension87 mm
Width Dimension22.5 mm
Depth Dimension121 mm
Net Weight160 g
Gross Weight170 g
