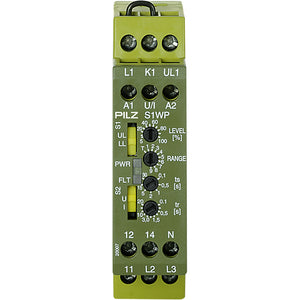

PILZ S1WP 9A 110-230VAC/DC UM 0-415VAC/DC

SUA00002630

Technical Data
Electrical Data
Supply Voltage (V)230 V
Type of Supply Voltage U1AC
Power Consumption AC5 VA
Max. Device Circuit Breaker
Max. Conductor Cross Section
Measuring Circuit
U Meas. Range Analogue Input0 - 415 V
I Meas. Range Analogue Input9 A
Freq. Meas. Range Analogue Input0 - 1000 Hz
Output Signals During Generator Operation
Uout During Generator Mode0 - -10 V
Relay Outputs
Utilisation Cat. AC/DC1 Stand.EN 60947-4-1
Utilisation Cat. AC15/DC13 Stand.EN 60947-5-1
Safety Contacts: AC at UL250 V AC
Relay Contact MaterialAgCdO
Additional Contact Details Relay+ 3.0 µm Au
Environmental Data
Climatic Suitability toEN 60068-2-78
Ambient Temperature0 - 55 °C
Condensation Permitted?Not permitted
EMC to Standard
  • EN 61000-6-2
  • EN 61000-6-4
Vibration to StandardEN 60068-2-6
Clearance & Creepage Dist. toEN 60947-1
Overvoltage CategoryIII
Pollution Degree Clear. & Creepage2
Mechanical Data
Mounting PositionAny
Housing Material Lower SectionPPO UL 94 V0
Housing Material Front PlateABS UL 94 V0
Housing Material Upper PartPPO UL 94 V0
Connection TerminalScrew terminal
Terminal StyleFixed
Flexible Cond. C/S AWG Info24 - 10 AWG
Height Dimension87 mm
Width Dimension22.5 mm
Depth Dimension121 mm
Net Weight140 g
Gross Weight150 g
