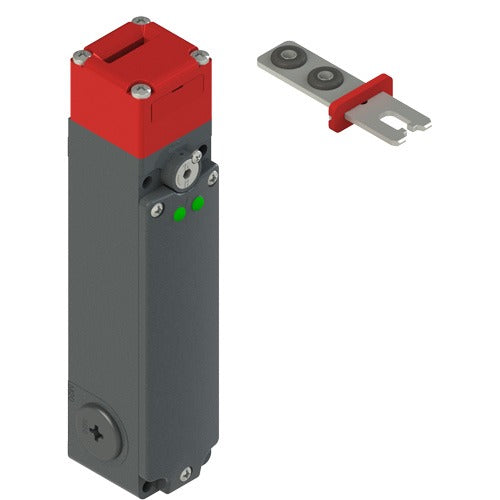

Pizzato FG 60AD1D0A-F22 FG series safety switch with separate actuator with lock

AKB000006353

Protection degree IP67 according to EN 60529 with cable gland having equal or higher protection degree
Working method D working method, locked actuator with de-energized solenoid
Housing Metal housing, three M20x1.5 cable entries
Contact block 1NO+1NC moved by actuator and 1NO+1NC moved by solenoid
Head Rotating head
Power 24 Vac/dc
LED 2 green LED switched-on by the solenoid power supply
Actuator Complete with straight actuator with rubber mountings VF KEYF22
Positive opening Yes
