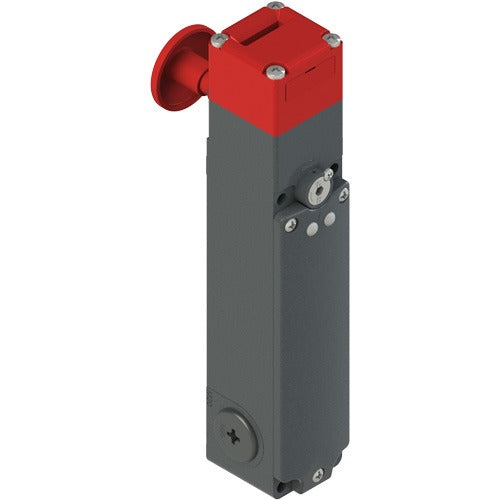

Pizzato FG 60DD7D2Z FG series safety switch with separate actuator with lock

AKB000006409

Protection Degree IP67 according to EN 60529 with cable gland having equal or higher protection degree
Working Method D working method, locked actuator with de-energized solenoid
Housing Metal housing, three M20x1.5 cable entries
Contact Block 2NC moved by actuator and 1NO+1NC moved by solenoid
Head Rotating head with escape pushbutton
Power 230 Vac
LED Without LED
Actuator Without actuator
Positive Opening Yes
