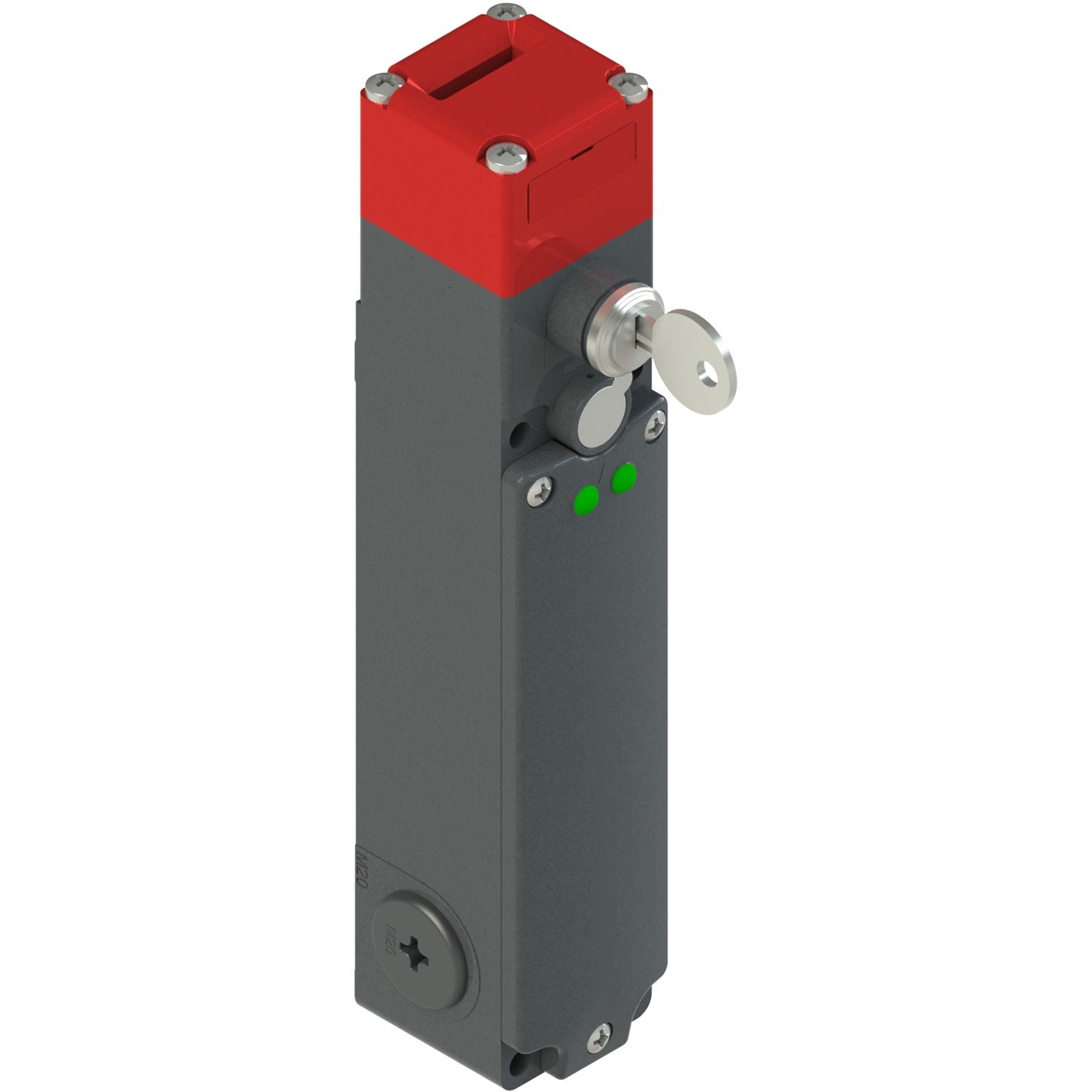

Pizzato FG 61ED5D0A FG series safety switch with separate actuator with lock

AKB000006496

Protection degree IP67 according to EN 60529 with cable gland having equal or higher protection degree
Working method D working method, locked actuator with de-energized solenoid
Housing Metal housing, three M20x1,5 cable entries
Contact block 2NO+1NC moved by actuator and 1NO moved by solenoid
Head Rotating head with lock auxiliary release device
Power 24 Vac/dc
LED 2 green LED switched-on by the solenoid power supply
Actuator Without actuator
Positive opening Yes
