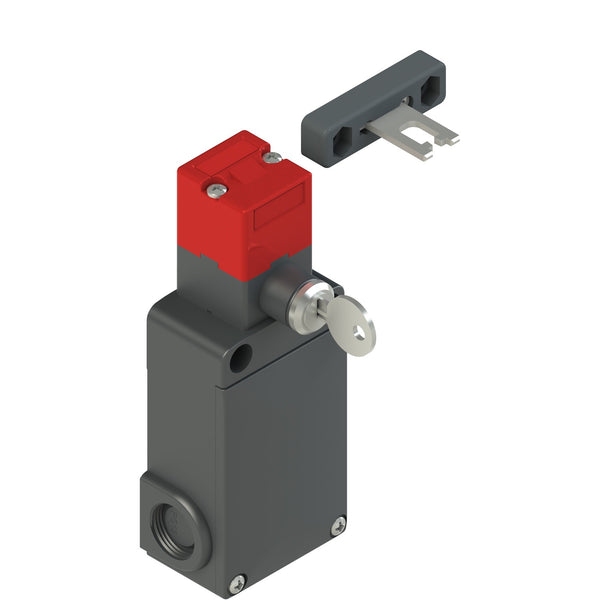

Pizzato FS 3098D024-F7M2 FS series safety switch with separate actuator with lock

AKB000006647

Protection Degree IP67 according to EN 60529
Power 24 Vac/dc (D working method)
Housing Technopolymer housing, three threaded M20x1,5 conduit entries
Contact Block 2NC moved by actuator and 1NC moved by solenoid
Head Rotating head with auxiliary lock release device
Working Method D working method, locked actuator with de-energized solenoid
Actuator Adjustable in one direction
Positive Opening Yes
