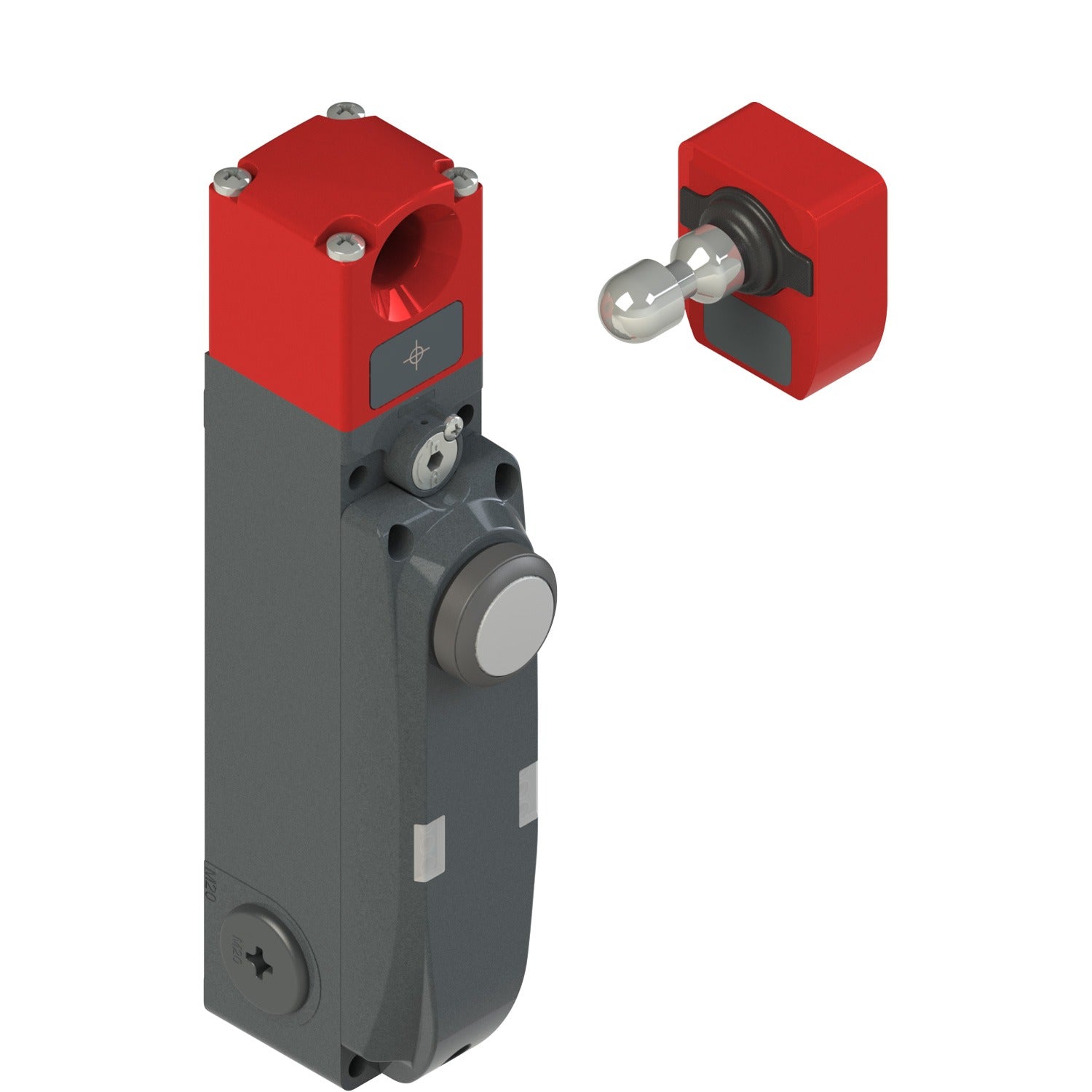

Pizzato NG 2D1D321H-F31 NG series safety switch with lock and integrated control devices, with actuator

AKB000006872

Protection degree IP65 according to EN 60529
Cover, position 1 1 pushbutton white 1NO+1NC
Cover configuration 1 device
Housing Metal housing, three threaded M20x1,5 conduit entries
Head Rotating head
Working method D working method, locked actuator with de-energized solenoid
Inputs and outputs 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3: actuator inserted,
1 signalling output O4: actuator locked,
I4 or IE1-IE2 inputs for solenoid activation,
1 reset input I3
Safety output activation OS Activation mode 2: safety outputs active with actuator inserted
Actuator Complete with actuator with high coding level VN NG-F31
Type of connection Without connector
